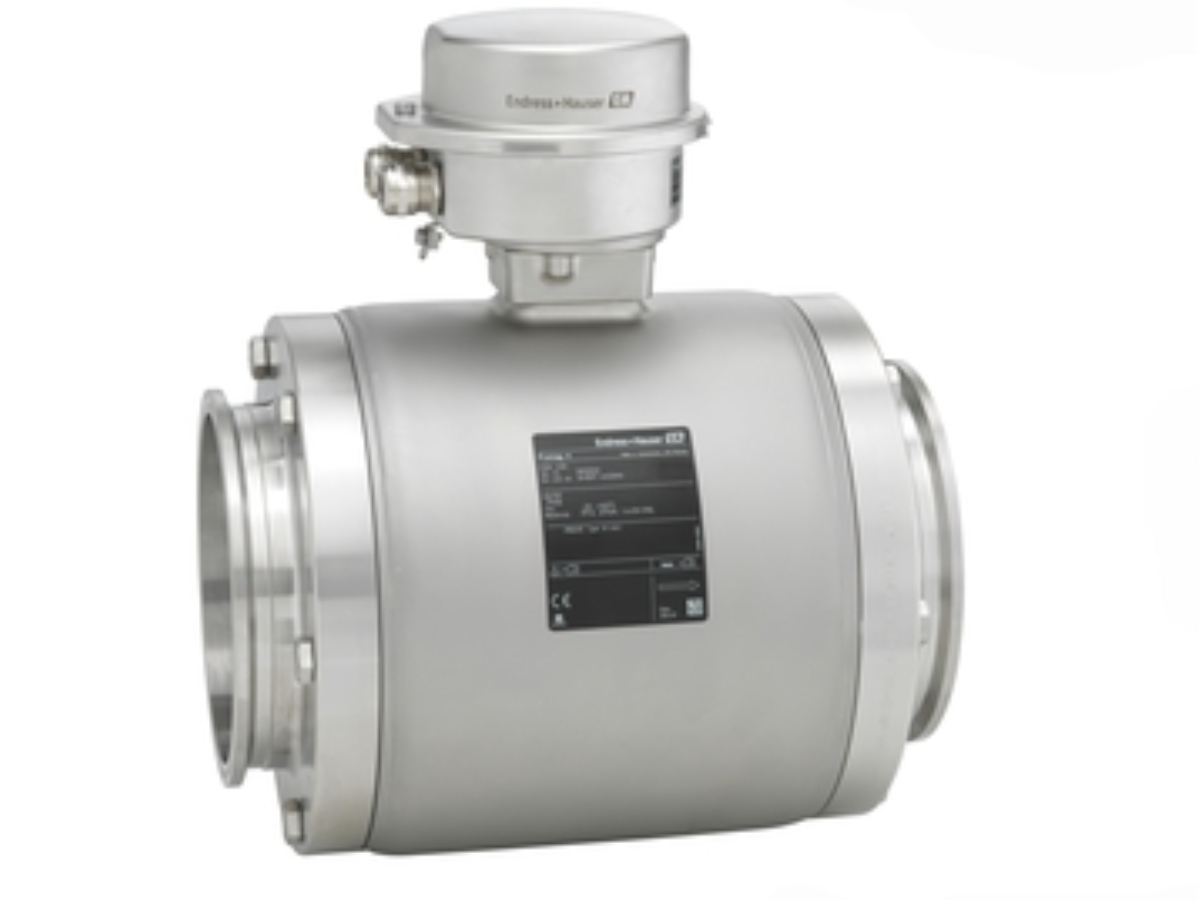

E+H Proline Promag H 100 Electromagnetic Flowmeter

Hygienic Flow Measurement for Food, Beverage, and Life Sciences

Maintaining rigorous sanitary standards while optimizing flow efficiency is critical in hygienic manufacturing processes. The Endress+Hauser Promass H 100 Electromagnetic Flowmeter is a specialized solution engineered specifically for liquid dosing, batching, and continuous flow monitoring in sterile and food-grade production lines. As an experienced global distributor of industrial automation instruments and process controls, we supply authentic, factory-new Endress+Hauser instrumentation to meet stringent sanitary and regulatory requirements across international markets.

The Promag H 100 sensor is designed with high-performance PFA lining and corrosion-resistant wetted materials, making it suitable for both aggressive cleaning chemicals and sensitive process fluids. The sensor housing is constructed from stainless steel (316L/1.4435 electrodes and sanitary connections) and fully complies with international sanitary guidelines including 3-A, EHEDG, and FDA regulations. Whether measuring purified water (PW), Water for Injection (WFI), dairy products, beverages, or active pharmaceutical solutions, the meter ensures complete biological safety and zero risk of batch contamination.

Ultra-Compact Design and Skid Optimization

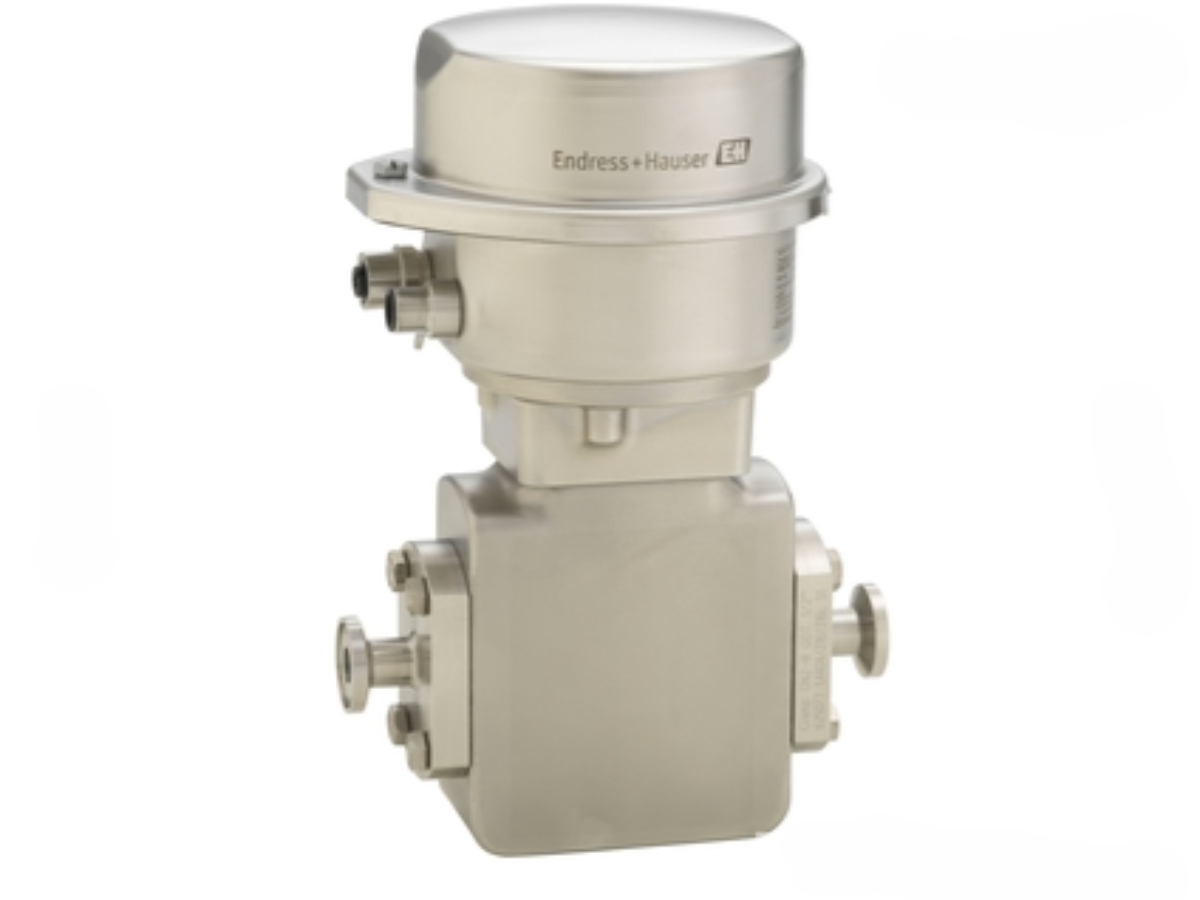

Floor space and cabinet volume are often heavily constrained in modern OEM skid architectures and modular processing units. The Promag H 100 features an ultra-compact transmitter housing that delivers full instrument functionality within a minimal installation footprint.

Key structural and mechanical benefits include:

• Zero Pipe Constriction: No moving parts or internal flow obstructions, eliminating head loss and saving pumping energy.

• 0 x DN Full-Bore Installation: Advanced signal processing and sensor geometry permit mounting directly after pipe bends, valves, or pumps without sacrificing accuracy due to turbulent flow profiles.

• Flexible Process Connections: Compatible with a wide variety of hygienic adapters, including Tri-Clamp, DIN 11851, SMS, ISO 2852, and welded nipples for seamless mechanical integration.

Continuous Compliance with Heartbeat Technology

To streamline quality assurance and comply with strict FDA 21 CFR Part 11 and ISO 9001 regulations, the Promag H 100 includes Endress+Hauser’s Heartbeat Technology. This onboard diagnostic suite performs real-time, non-disruptive device verification during active process operations. Maintenance staff can run automated health checks and generate tamper-proof verification reports for regulatory audits, significantly extending calibration cycles and preventing unplanned downtime.

Technical Specifications

• Nominal Diameter Range: DN 2 to 150 (1/12″ to 6″)

• Measuring Range: 0.06 dm³/min to 600 m³/h (0.015 to 2650 gal/min)

• Maximum Measurement Error: Standard ±0.5% o.r. ± 1 mm/s; Optional high accuracy ±0.2% o.r. ± 2 mm/s

• Medium Temperature Range: -20 to +150 °C (-4 to +302 °F)

• Maximum Process Pressure: PN 40, Class 150, 20K

• Liner Material: PFA (CIP/SIP cleanable, FDA compliant)

• Electrode Materials: Stainless steel 1.4435 (316L), Alloy C22, Tantalum, Platinum

• Transmitter Protection Class: IP66/67 standard, IP69 optional

Applications

• Food & Beverage Processing: Precise flow measurement of milk, beer, fruit juices, liquid sugar, and syrups in hygienic production lines requiring strict 3-A and EHEDG compliance.

• Life Sciences & Pharmaceutical Manufacturing: Reliable volumetric monitoring for purified water (PW), water for injection (WFI), media preparation, and active pharmaceutical ingredient (API) dosing circuits.

• Hygienic Cleaning Circuits (CIP & SIP): Accurate monitoring of high-temperature wash solutions, caustic detergents, and acid rinses during automated Clean-in-Place and Steam-in-Place cycles.

• Dosing & Filling Machinery (OEM & Skids): Compact design optimized for high-speed liquid filling machines, proportioning systems, and space-restricted OEM process skids.

• Specialty Beverage & Brewery Applications: Continuous tracking of yeast slurries, mash, wort, and liquid additivities under varying medium temperatures and electrical conductivities.

FAQ

Q1: What media and industries is the Promag H 100 flowmeter designed for? A: It is designed for conductive liquids, slurries, and liquid food products, primarily used in hygienic applications within the food and beverage, dairy, brewery, pharmaceutical, and biotechnology sectors.

Q2: How does the ultra-compact transmitter design benefit system builders? A: The compact footprint allows easy installation into tight spaces, process skids, and integrated equipment racks where space is limited, without sacrificing measuring precision or functionality.

Q3: Can we purchase genuine Endress+Hauser Promag H 100 flowmeters through your company? A: Yes, as an international distributor of industrial automation instruments, we source 100% genuine Endress+Hauser products and provide competitive pricing, expert model selection support, and global logistics services.
