Product Overview

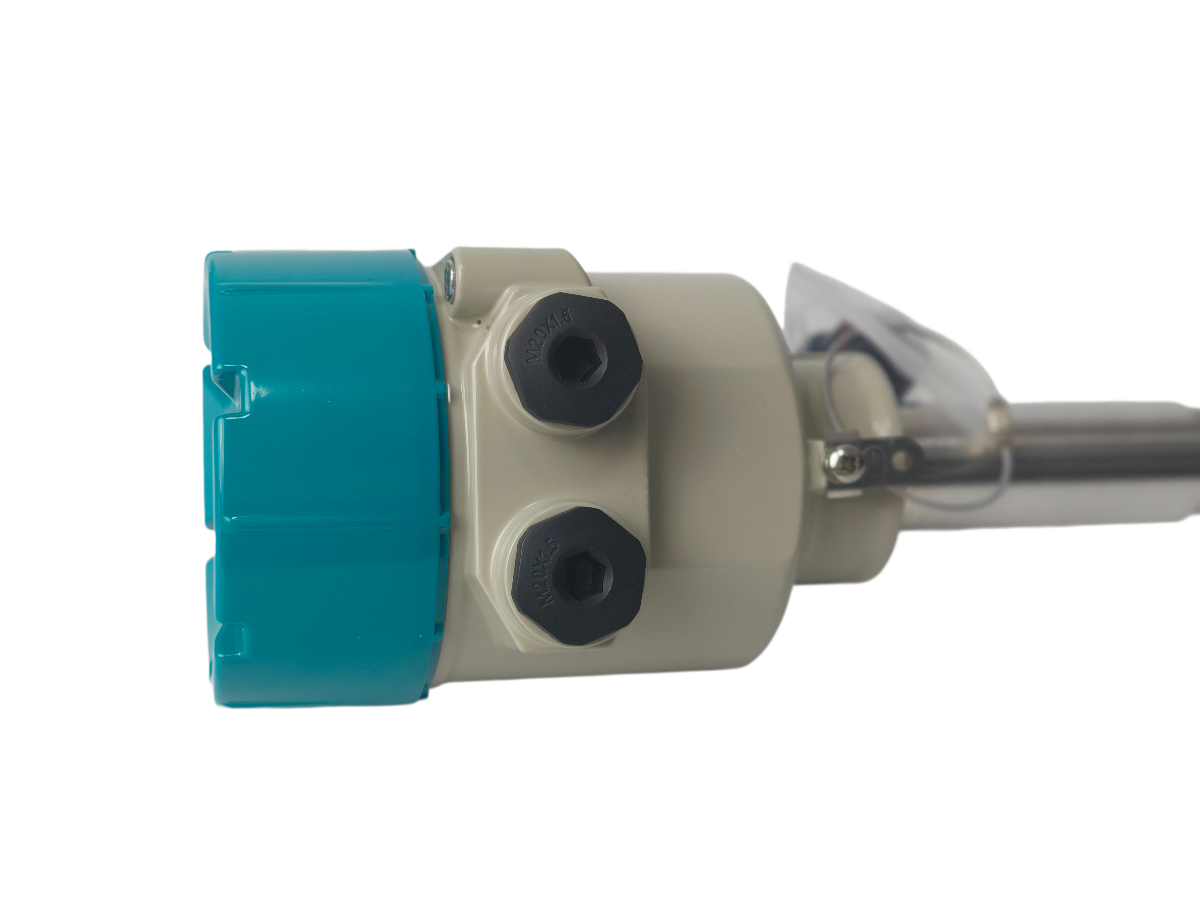

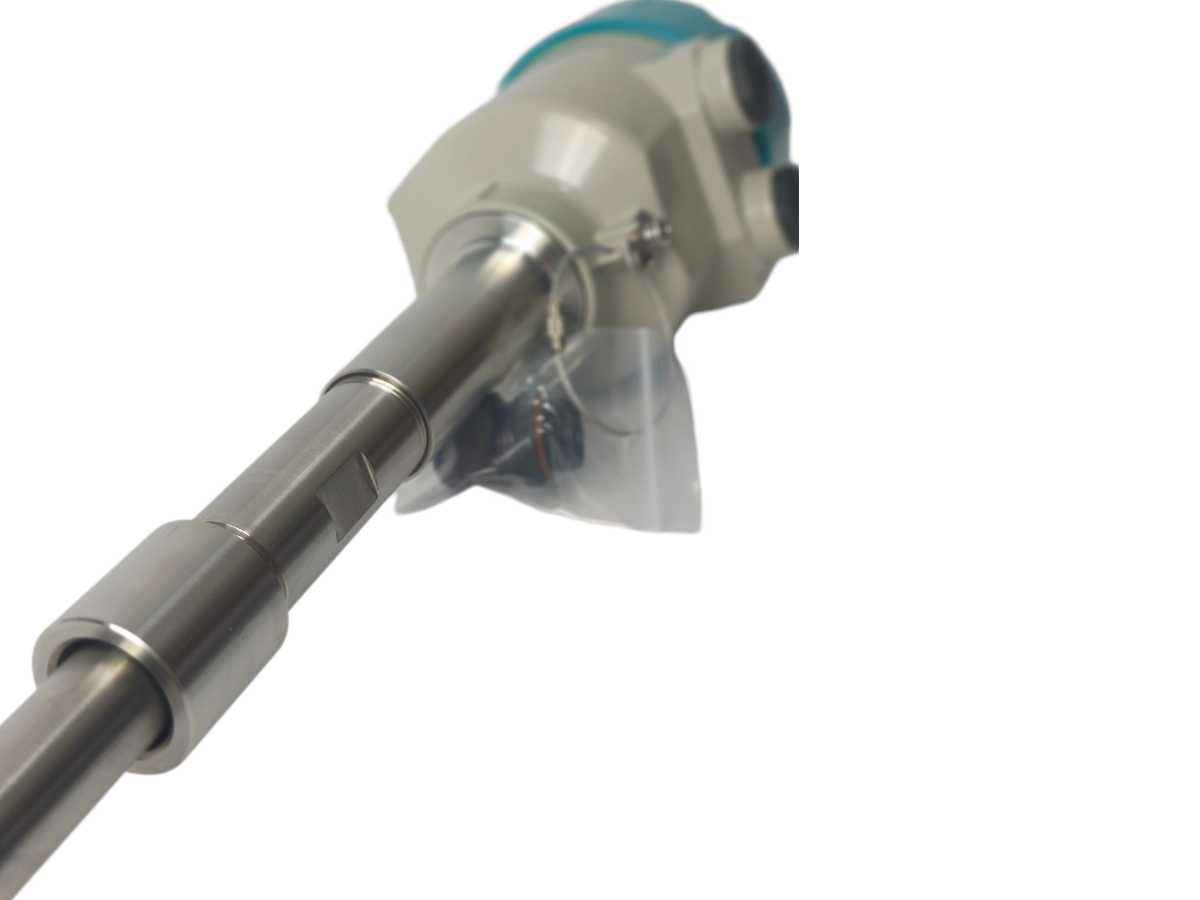

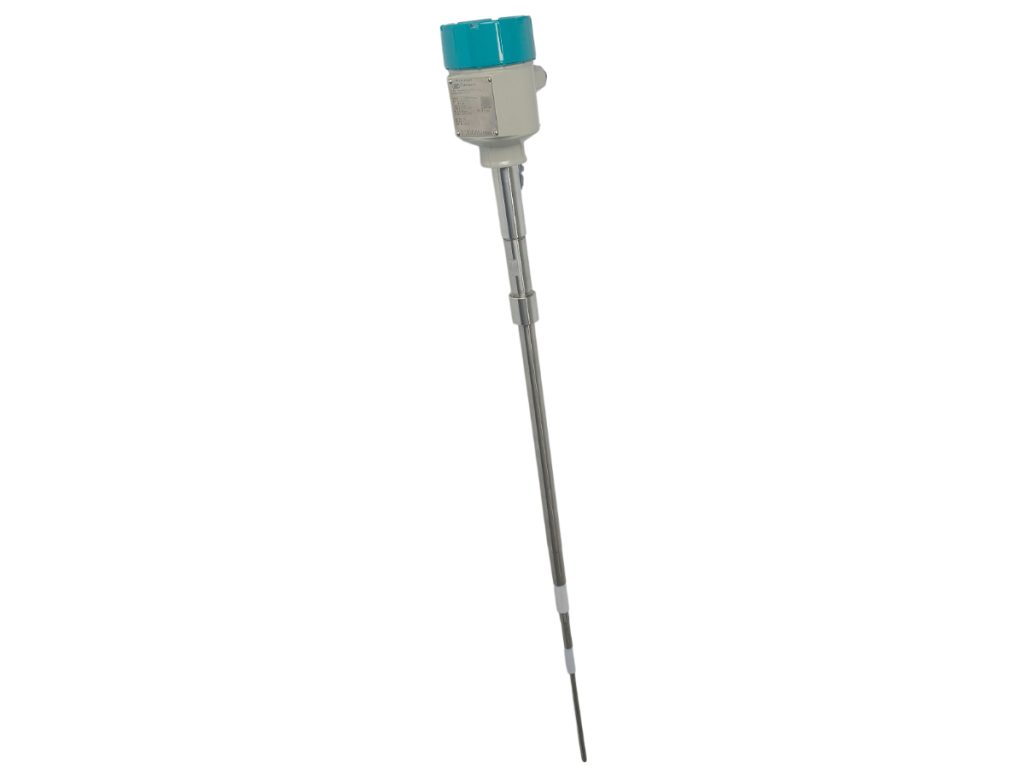

Chongqing Chuanyi RAS Series RF Admittance Level Switch
RAS
The Chuanyi RAS RF Admittance Level Switch utilizes advanced radio frequency (RF) technology to provide precise high-level or low-level limit alarms. Engineered for demanding process environments, it distinguishes between the actual process material and coated accumulation on the probe, ensuring dependable performance. This robust instrument guarantees maintenance-free operation and overflow protection across various storage tanks, silos, and hoppers.
The Chongqing Chuanyi RAS Series RF Admittance Level Switch represents an advanced and dependable solution for point level detection and automation control in industrial processing systems. Evolving from traditional capacitance measurement principles, the RAS series integrates radio frequency admittance technology along with a driven shield element to overcome the challenges of scaling, sticky media, and material buildup.
Advanced Anti-Hang Technology In industrial processes involving viscous liquids, sludges, or powdery bulk solids, sensor fouling often causes conventional capacitance switches to malfunction by creating false contact closures. The RAS series utilizes sophisticated electronic circuitry that actively isolates the measuring probe from vessel wall effects and neutralizes the electrical currents caused by accumulated coatings. This active suppression guarantees that the switch responds solely to the actual presence or absence of the target medium, ensuring exceptional reliability.
Robust Performance and Versatile Application Designed to withstand harsh operational conditions, the switch accommodates a wide spectrum of media types, ranging from aggressive chemicals and conductive liquids to dry powders and heavy granules. Its solid-state electronics and rugged mechanical housing ensure long-term durability in complex industrial sectors such as chemical processing, water treatment, material handling, and power generation.
User-Friendly Integration and Operation Equipped with standard relay contact outputs (SPDT), the RAS series integrates seamlessly into local alarm circuits, PLCs, and plant Distributed Control Systems (DCS). It provides intuitive sensitivity adjustment and selectable fail-safe operation modes (high/low level protection), making it an ideal choice for automated overflow prevention and pump dry-run protection.
Applications
-
Chemical & Petrochemical: High and low level limit control in chemical storage tanks, reaction vessels, and polymer solutions.
-
Water & Wastewater Treatment: Level alarm monitoring in sewage lift stations, chemical dosing tanks, and sludge hoppers.
-
Power Generation & Metallurgy: Managing ash hoppers, coal powder bins, and utility liquid storage.
-
Food & Beverage / Grain & Feed: Point level detection in grain silos, flour bins, and ingredient hoppers.
-
General Industrial Automation: Overflow protection and empty-run detection in industrial storage vessels.
Technical Parameters
-
Product Series: Chongqing Chuanyi RAS Series
-
Measurement Principle: RF Admittance (Radio Frequency Capacitance & Resistance with Driven Shield)
-
Applicable Media: Liquids, viscous fluids, slurries, powders, granules, and bulk solids
-
Output Signal: Relay contact output (SPDT) for limit switching
-
Power Supply: Standard industrial DC/AC power configurations
-
Enclosure Rating: Weatherproof and robust industrial housing for field installations
-
Process Connection: Threaded or flanged mounting options
FAQ
Q1: How does the RF admittance switch prevent false triggers from material buildup? A: The RAS series incorporates a driven shield circuit that cancels out the electrical current caused by accumulated material coating on the probe, ensuring the switch responds only to the actual level of the process medium.
Q2: Can the RAS series be used for both liquid and solid limit detection? A: Yes, it is highly versatile and capable of detecting high or low levels of conductive/non-conductive liquids, slurries, as well as dry powders and bulk solids.
Q3: Does the switch offer fail-safe operation modes? A: Yes, it features selectable fail-safe modes (such as high-level or low-level protection), ensuring that the output defaults to a safe state in the event of power loss.
Q4: Is regular maintenance or recalibration required? A: Due to its advanced anti-hang technology and solid-state design, the RAS series requires minimal routine maintenance and retains its calibration stability over long periods of operation.
