Product Overview

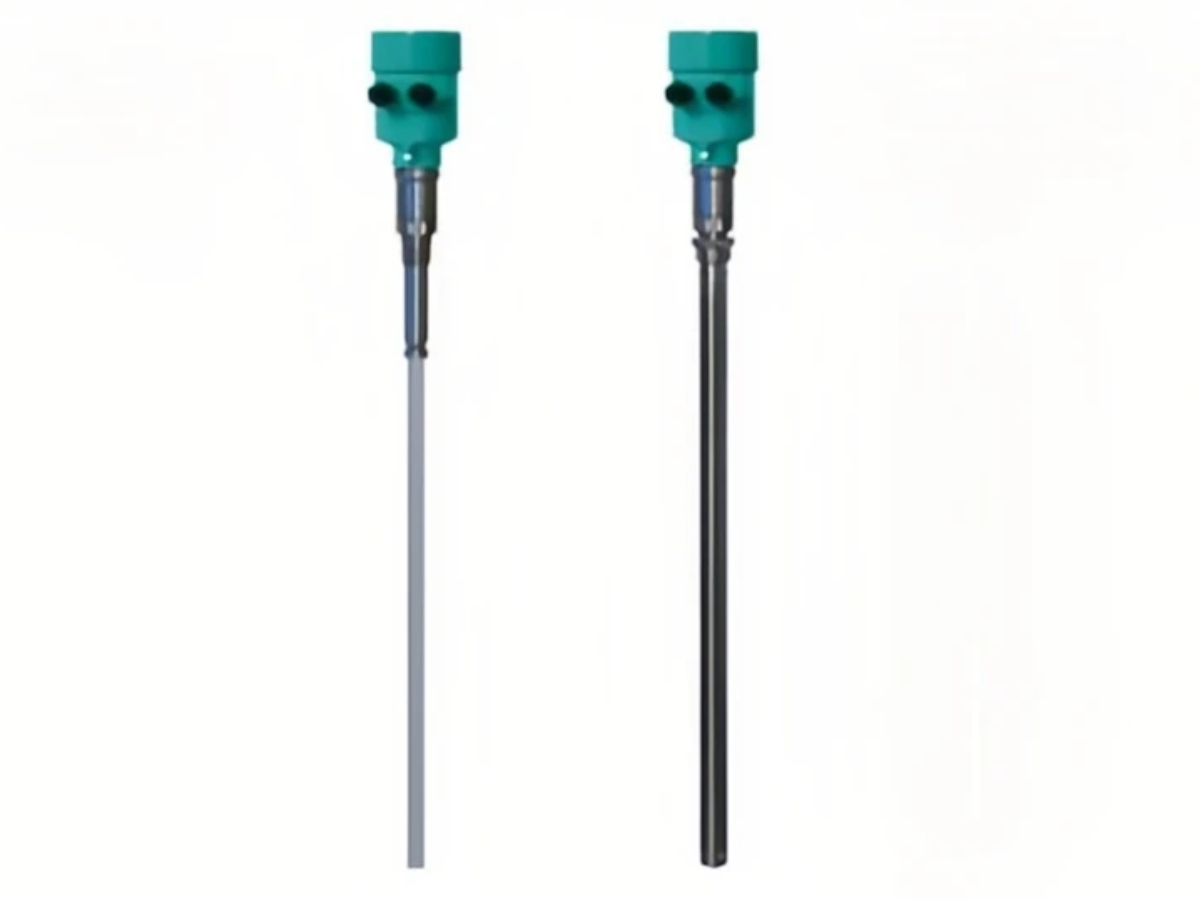

Chongqing Chuanyi MCS Series RF Admittance Level Meter
MCS
The Chongqing Chuanyi MCS series RF admittance level meter is designed for accurate continuous measurement of liquids, slurries, and solids in demanding industrial applications. Featuring advanced anti-hang-up circuitry, it effectively eliminates false readings caused by material buildup on the probe.
Advanced Anti-Hang Technology
In industrial processes involving sticky liquids, slurries, or powders, sensor probe fouling often leads to measurement errors. The MCS series integrates sophisticated electronic circuitry that distinguishes between the actual process material and the coated buildup on the probe. This active suppression of coating effects guarantees high accuracy and prevents false switching or erratic output signals, significantly reducing maintenance downtime.
Robust Design and Versatile Application
Designed to withstand extreme operating pressures and temperatures, the transmitter housing and probe options accommodate a wide spectrum of media types. From aggressive chemicals and corrosive liquids to fine powders, grains, and heavy aggregates, the MCS series maintains dependable operation. Its rugged construction ensures long-term durability in complex industrial settings such as chemical processing, water treatment, metallurgy, and material handling.
User-Friendly Configuration and Integration
The instrument features intuitive local configuration options, allowing operators to easily adjust zero and span settings. With standard industrial output signals (such as 4-20mA with HART protocol), it integrates seamlessly into existing Distributed Control Systems (DCS) and Programmable Logic Controllers (PLCs). The modular design supports flexible probe lengths and configurations to fit diverse vessel geometries.
Applications
-
Chemical & Petrochemical: Measurement of chemical storage tanks, acids, bases, and viscous polymer solutions.
-
Water & Wastewater Treatment: Monitoring sludge levels, sewage, and treatment chemicals.
-
Power Generation: Handling fly ash, coal powder, and water storage in power plants.
-
Food & Beverage / Grain & Feed: Measuring grain silos, flour bins, and liquid ingredients.
-
Mining & Metallurgy: Monitoring ore slurries, powders, and aggregate bins.
Technical Parameters
-
Product Series: Chongqing Chuanyi MCS Series
-
Measurement Principle: RF Admittance (Radio Frequency Capacitance & Resistance)
-
Applicable Media: Liquids, viscous fluids, slurries, powders, granules, and bulk solids
-
Output Signal: 4-20mA analog output with HART communication (dependent on configuration)
-
Power Supply: Standard industrial DC power (e.g., 24V DC)
-
Enclosure Rating: Weatherproof and explosion-proof options available for hazardous environments
-

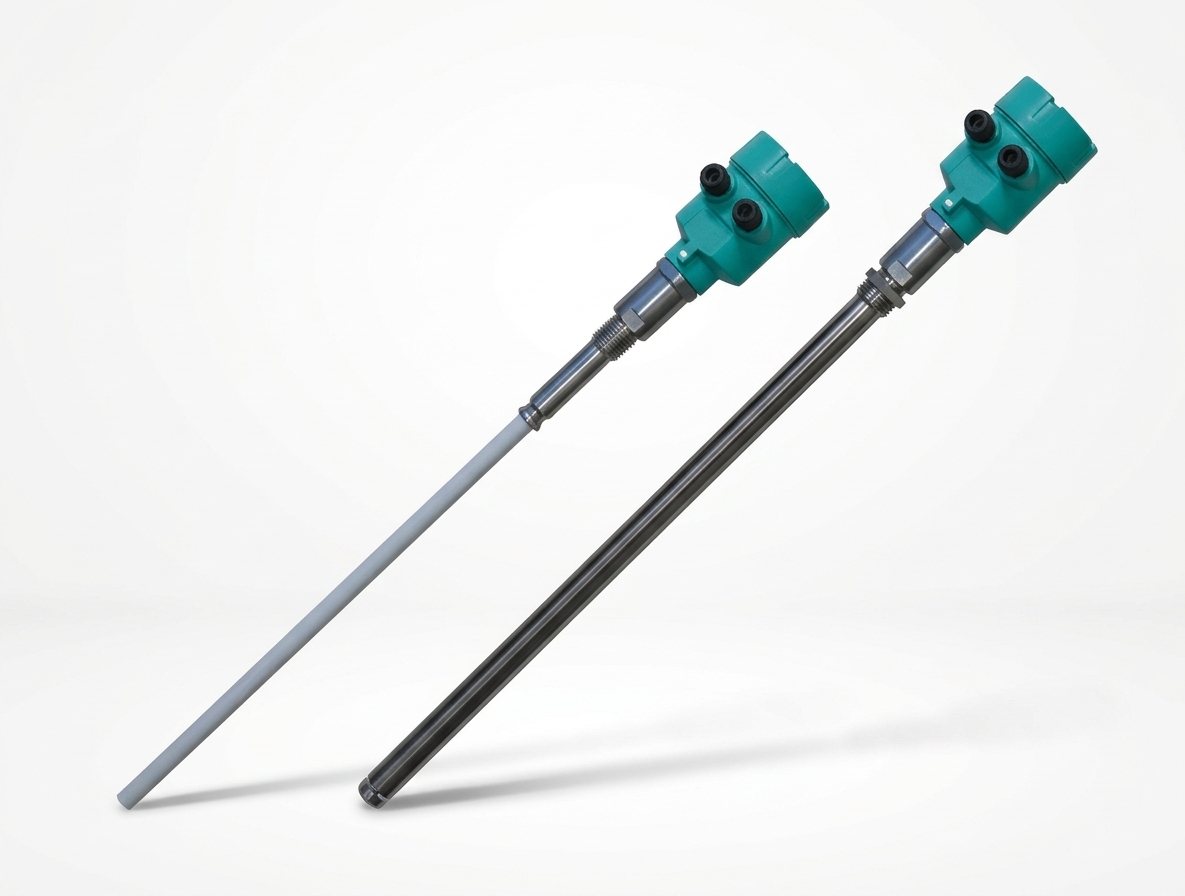

Probe Types: Rod and cable configurations available to suit different tank depths
FAQ
Q1: How does the RF admittance technology prevent false readings from material buildup? A: The MCS series uses a driven shield circuit that isolates the measuring probe from the vessel wall and cancels out the electrical current caused by accumulated material coating on the probe, ensuring it only measures the actual process level.
Q2: Can the MCS series be used for both liquid and solid applications? A: Yes, it is highly versatile and capable of measuring conductive/non-conductive liquids as well as dry powders and bulk solids in silos or hoppers.
Q3: What output signals are supported for system integration? A: The instrument typically supports a 4-20mA analog output along with HART protocol for digital communication and remote parameter configuration.
Q4: How do I select the proper probe length and type? A: Probe selection depends on your vessel dimensions, installation nozzle size, and the physical characteristics of the measured medium (such as temperature, pressure, and corrosiveness).
