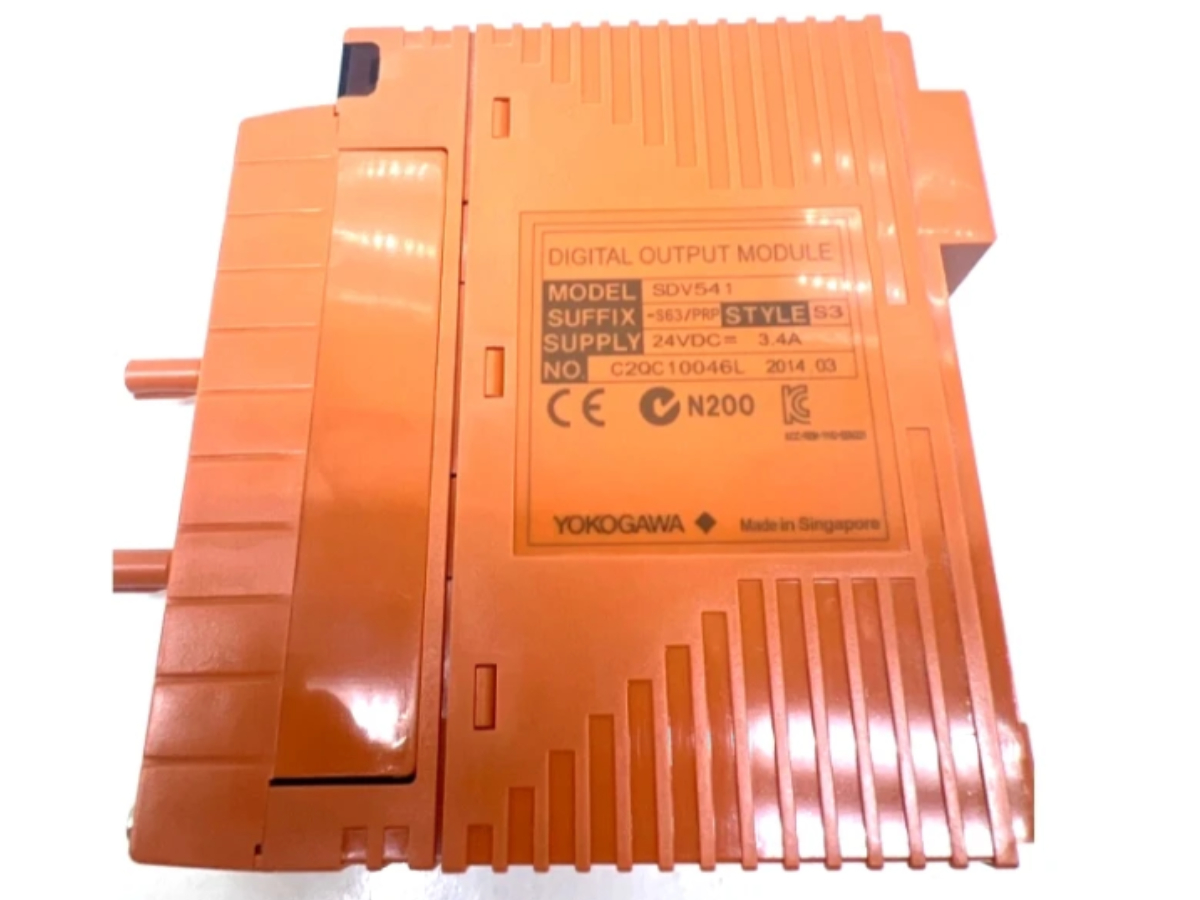

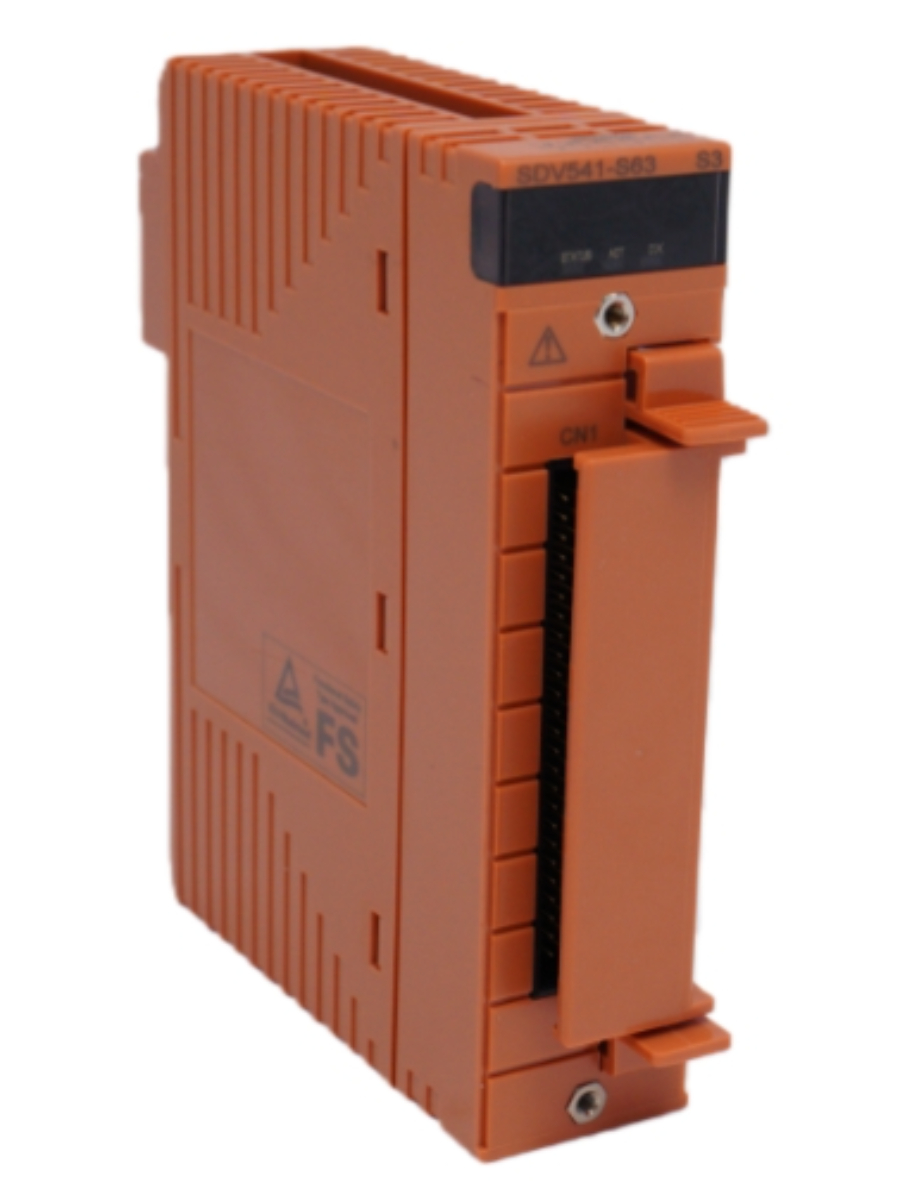

YOKOGAWA SDV541-S63 Digital Output Module

Product Overview

The YOKOGAWA SDV541-S63 is an advanced 16-channel Digital Output Module engineered specifically for Yokogawa’s ProSafe-RS safety instrumented system architecture. Designed to output on/off status signals to field equipment, this module acts as a critical control node in safety-critical interlock and emergency shutdown (ESD) loops. The S63 suffix configuration incorporates standard non-explosion protection with an integrated signal cable interface adapter, along with ISA Standard G3 corrosive gas resistance and an extended operating temperature range of -20°C to +70°C, ensuring exceptional durability in harsh industrial atmospheres.

Key Features & Highlights

• ProSafe-RS Safety Integration: Built explicitly for high-integrity safety instrumented systems, ensuring reliable signal processing in safety-critical control and shutdown loops.

• 16-Channel Module Isolation: Features 16 independent output channels with module isolation, protecting system logic from field-side electrical disturbances.

• Dual-Redundancy Capability: Supports dual-redundant hardware configurations to maximize system availability and fault tolerance in high-stakes safety applications.

• Environmental Hardening: Manufactured with built-in ISA Standard G3 compliance and wide temperature tolerance (-20°C to +70°C) for rigorous plant environments.

• Flexible Field Termination: Compatible with signal cable interface adapters for MIL cables and dedicated signal cables, ensuring streamlined wiring installations.

• Compact and Lightweight Build: Designed with a space-saving width of 32.8 mm and an approximate weight of 0.39 kg (with signal cable interface adapter), minimizing backplane mechanical stress.

Functional Architecture

The SDV541-S63 operates on internal 5 V DC and external 24 V DC power supplies. It supports a rated load voltage of 24 V DC with a maximum output current of 0.5 A per channel (8 A per module), and features a rapid maximum response time. Built-in withstand voltage protection (2 kV AC between output signal and system) ensures stable operation under fluctuating industrial electrical conditions.

Application

• Oil & Gas Upstream & Downstream: Emergency shutdown systems (ESD), fire & gas monitoring, and offshore platform safety interlocking loops.

• Petrochemical & Chemical Plants: High-integrity digital trip systems and safety instrumented protection networks.

• Power Generation Facilities: Boiler safety interlocks, turbine protection, and critical shutdown logic systems.

• Water & Wastewater Management: Critical automated safety valve control and shutdown infrastructure.

Technical Specifications

Item / Feature	Specification Details
Model & Suffix Code	SDV541-S63 (16-Channel Digital Output Module)
Number of Outputs	16 channels, module isolation
Output Signal Type	Voltage pulse / On-Off status output
Rated Load Voltage	24 V DC (+20% / -10%)
Maximum Output Current	0.5 A / channel, 8 A / module
External Power Supply	24 V DC (+20% / -10%)
Withstand Voltage	2 kV AC between output signal and system for 1 minute
Environmental Protection	ISA Standard G3 compliant
Operating Temperature	-20°C to +70°C
Current Consumption	300 mA max (5 V DC), 180 mA max (24 V DC)
Dimensions (W x H x S)	Approx. 32.8 mm x 130 mm x 124 mm (With signal cable interface adapter)
Weight	Approx. 0.39 kg (With signal cable interface adapter)
External Connection	Signal cable interface adapter (MIL connector / Dedicated signal cable)

FAQ

Q1: What does the suffix code “-S63” indicate on the SDV541 module?

A: The -S denotes the standard module type, 6 indicates the inclusion of a signal cable interface adapter with no explosion protection, and 3 specifies ISA Standard G3 corrosive resistance with an extended operating temperature range of -20°C to +70°C.

Q2: Can the SDV541-S63 module be configured for dual-redundant operation?

A: Yes, the SDV541 output module can be configured in a dual-redundant setup by pairing two matching modules to enhance system availability and fault tolerance.

Q3: What is the maximum load current capacity for this output module?

A: The module supports a maximum output current of 0.5 A per channel and a total of 8 A per module under standard operating conditions.

Q4: What types of field wiring connections are supported by the -S63 version?

A: The SDV541-S63 uses a signal cable interface adapter designed to support MIL cables and dedicated signal cables for reliable control cabinet integration.
