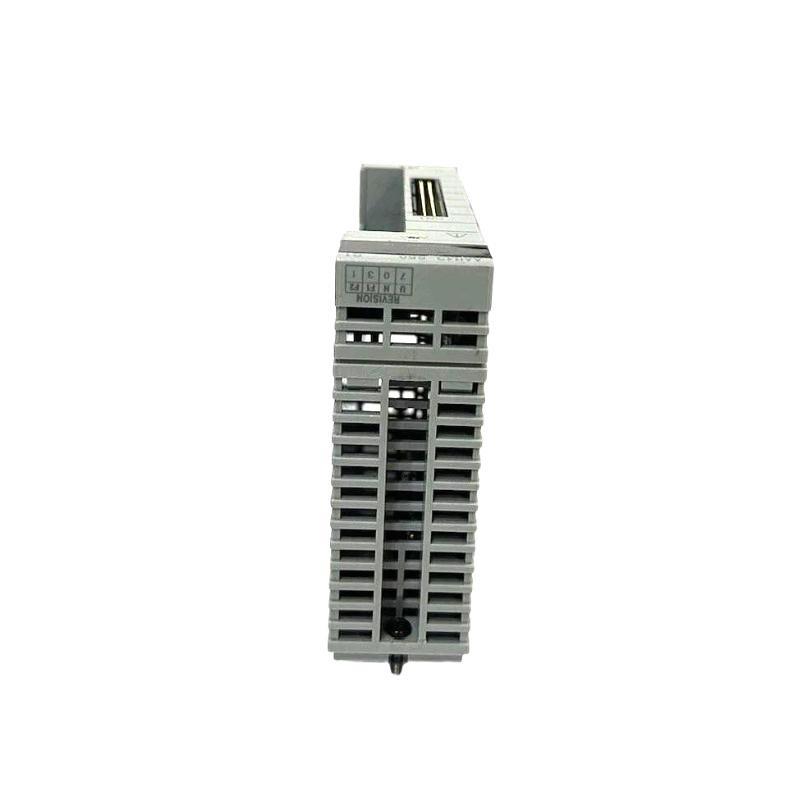

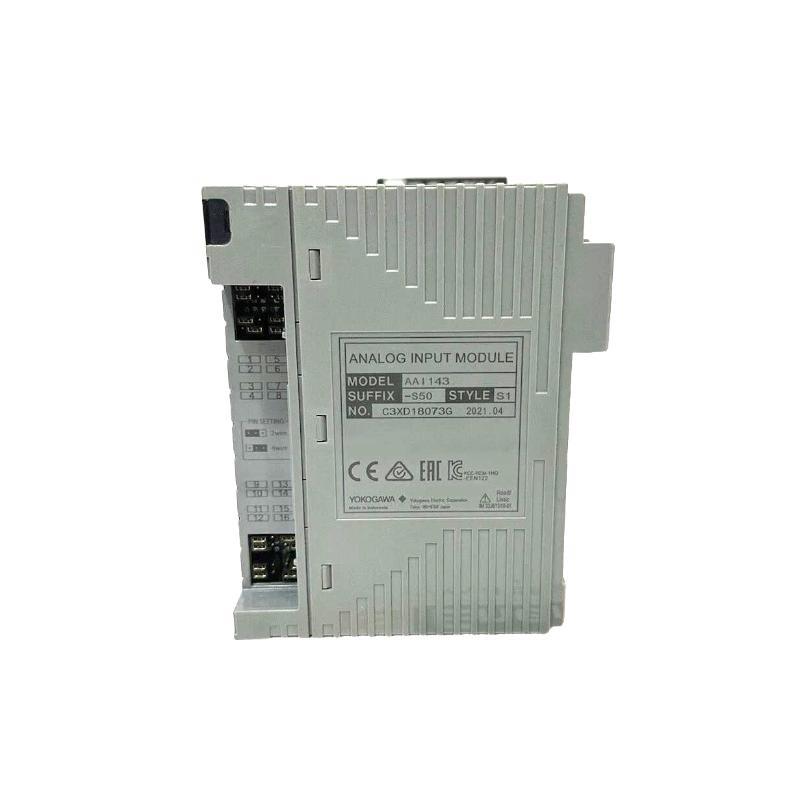

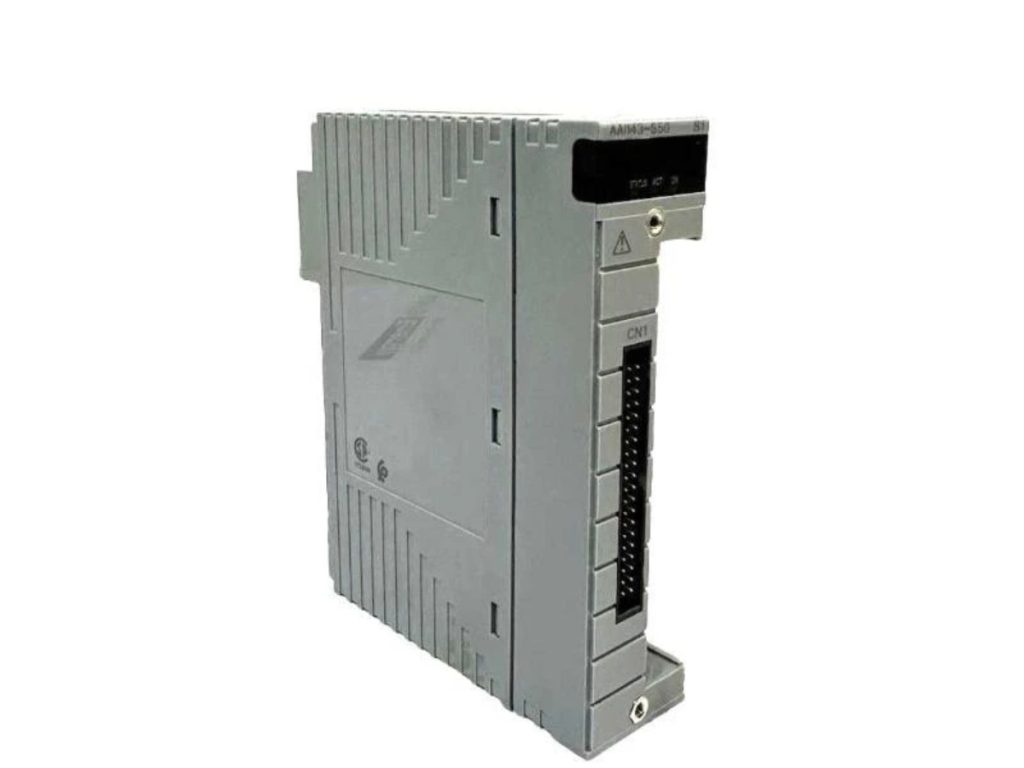

Yokogawa AAI143-S50/A4S10 Analog Input Module

High-Density Analog Input Signal Acquisition

The Yokogawa AAI143-S50/A4S10 Analog Input Module is an industrial-grade 16-channel current input card built for high-density signal monitoring within distributed control system (DCS) architectures. Operating on the industry-standard 4 to 20 mA DC current signal range, the module accurately captures continuous field variable data—such as process flow, vessel pressure, fluid level, and operating temperature—and converts it into high-precision digital values for real-time control logic and operator dashboards.

Built-In Surge Protection & Terminal Convenience

Featuring the /A4S10 option code, this module configuration includes the Model ATA4S-10 pressure clamp terminal block equipped with built-in surge absorbers. This integrated design simplifies field wiring while safeguarding internal electronic components against transient voltage spikes and lightning surges induced on field signal lines. The combination of standard 16-channel high-density input and robust terminal protection reduces cabinet space requirements and lowers maintenance overhead in demanding industrial plant environments.

Reliable Field Operation & Redundancy Support

Designed to maintain maximum uptime in critical process operations, the AAI143-S50/A4S10 supports dual-redundant installation configurations. When paired in a redundant slot architecture, the module enables seamless failover without interrupting signal acquisition, guarding against unplanned system shutdowns. Each channel can be configured via jumper pins to work with either 2-wire Loop-Powered Transmitters (providing stable transmitter power) or self-powered 4-wire instruments. With a fast 10 ms update period and solid temperature stability, the module ensures precise process tracking across refining, chemical manufacturing, power generation, and utility infrastructure.

 Applications

• Oil & Gas Operations: Multi-channel current signal conditioning for pipeline monitoring, production manifolds, and tank farm automation.

• Chemical & Petrochemical Facilities: Continuous process monitoring of chemical reactors, distillation columns, and safety interlocks.

• Power Generation Utilities: Data acquisition for boiler control systems, steam turbine instrumentation, and auxiliary plant operations.

• Water & Wastewater Treatment: Multi-sensor signal integration for pumping stations, filtration systems, and municipal water monitoring.

• General Industrial Automation: Precise 4-20 mA current loop monitoring across factory automation and process manufacturing plants.

Technical Specifications

Parameter	Specification Details
Model Code	AAI143-S50/A4S10
Module Type	Analog Input Module (4 to 20 mA DC)
Number of Input Channels	16 channels, non-isolated
Input Signal Range	4 to 20 mA DC
Allowable Input Current	24 mA max
Withstanding Voltage	1500 V AC for 1 minute (Input to system)
Input Resistance	Power ON: 270 Ω (20 mA) to 350 Ω (4 mA); Power OFF: ≥500 kΩ
Measurement Accuracy	±16 µA
Data Update Period	10 ms
Transmitter Power Supply	19.0 V DC or higher (at 20 mA), current limited to 25 mA
Transmitter Compatibility	2-wire or 4-wire (configurable per channel by setting pin)
Temperature Drift	±16 µA / 10°C
Redundancy Support	Supports dual-redundant deployment
Power Consumption	230 mA (5 V DC), 540 mA (24 V DC)
Terminal Block Option	/A4S10 (Pressure Clamp Terminal Block ATA4S-10 with surge absorber)
Weight	Approx. 0.3 kg

FAQ

Q1: What is the primary difference between the S50 and H50 suffix in the AAI143 series?

A: The AAI143-S50 is a non-isolated channel module suitable for common-ground signal loops, whereas the AAI143-H50 features isolated input channels. Both handle 16 channels of 4 to 20 mA DC signals.

Q2: Does the Yokogawa AAI143-S50/A4S10 support dual-redundant configurations?

A: Yes, the module fully supports dual-redundant pairing to ensure continuous data acquisition and system availability during hardware service.

Q3: What terminal block is included with the /A4S10 option?

A: The /A4S10 option includes the ATA4S-10 pressure clamp terminal block, which features built-in surge absorbers to protect signal lines against overvoltage transients.

Q4: Can this module supply power to 2-wire field transmitters?

A: Yes, the module provides integrated loop power (19.0 V DC or higher at 20 mA) for 2-wire transmitters, and can also interface with self-powered 4-wire transmitters.
