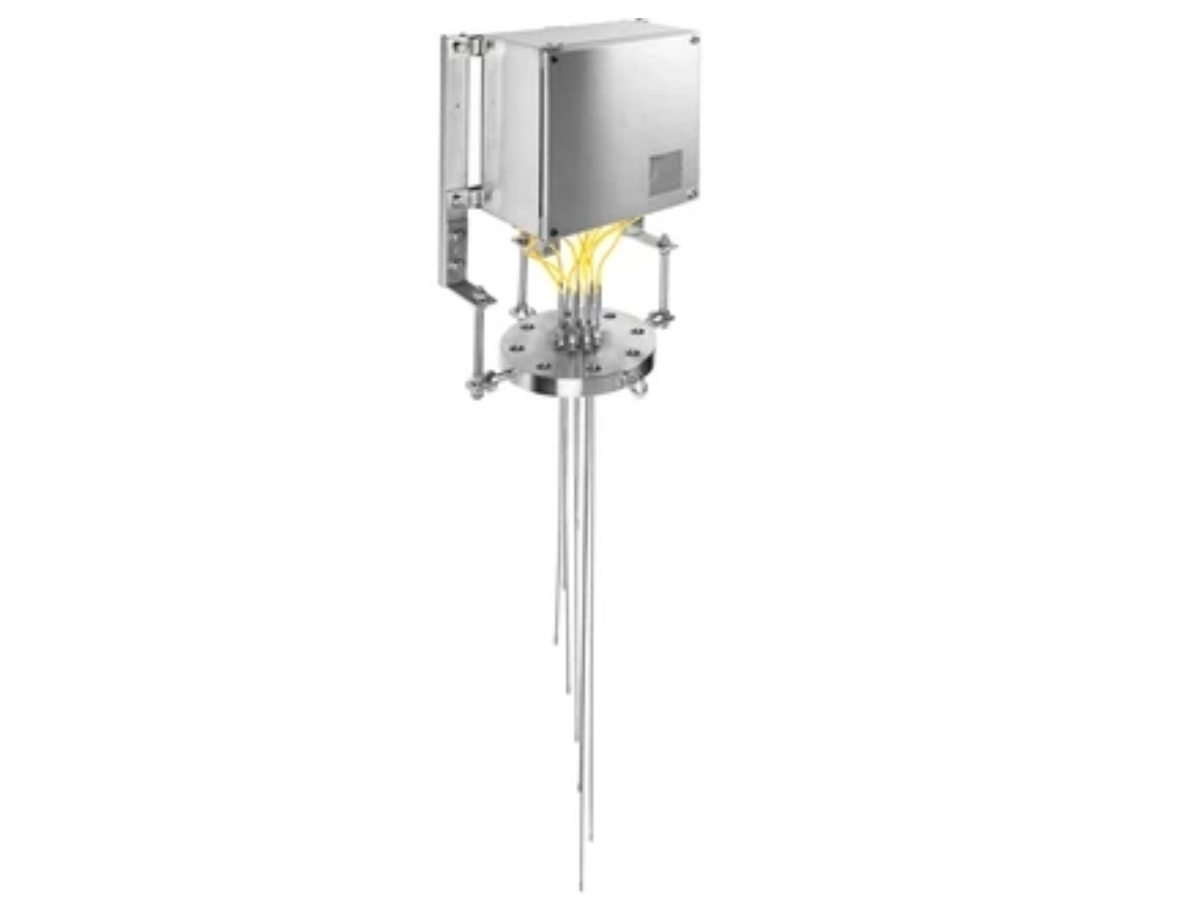

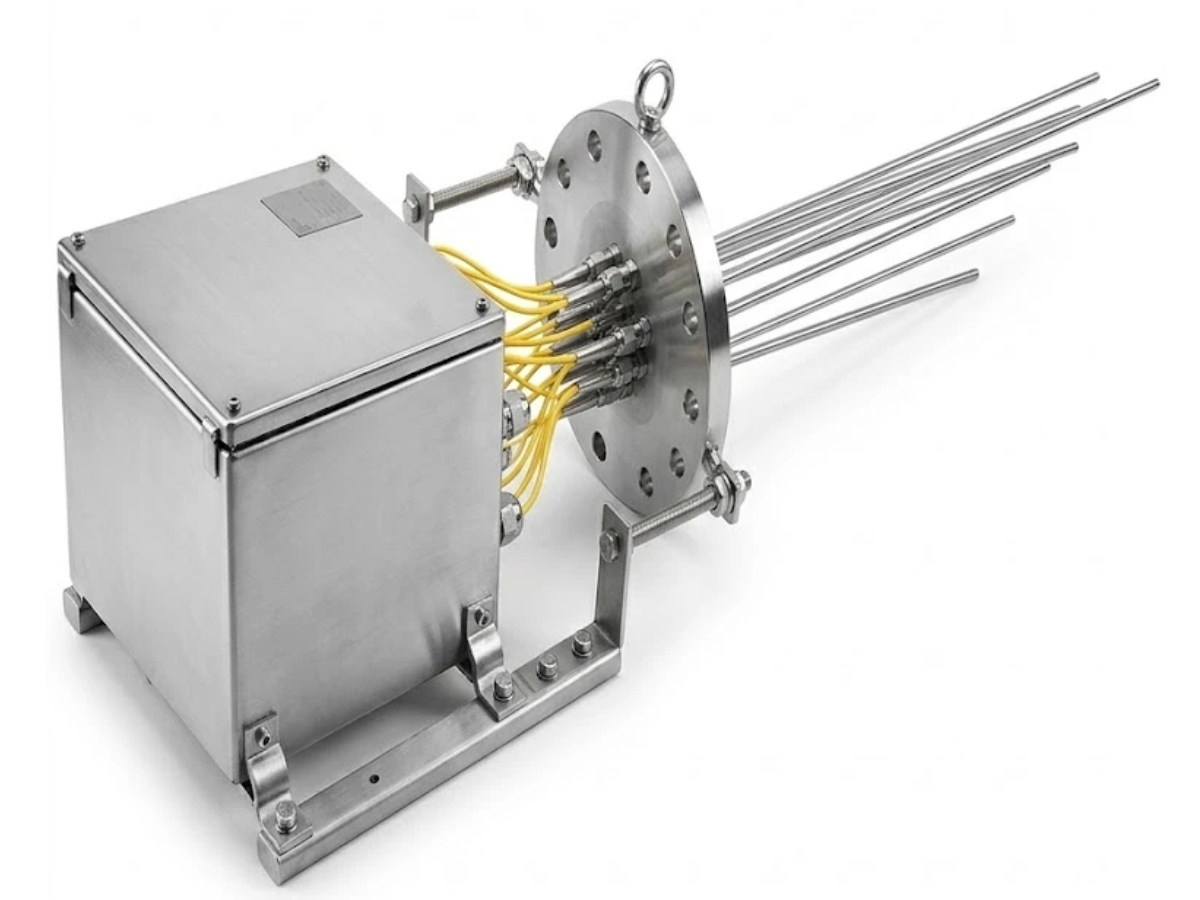

E+H iTHERM MultiSens Flex TMS01 Multipoint Thermometer

The Endress+Hauser iTHERM MultiSens Flex TMS01 represents an advanced multipoint temperature measurement system designed specifically for critical applications in refineries, petrochemical plants, and heavy chemical processing. Accurate spatial temperature monitoring inside large reactors, hydrocrackers, distillation columns, and storage tanks is vital to maintaining yield quality and preventing dangerous hot spots. The TMS01 addresses these challenges by delivering continuous, high-density 3D thermal profiling through a single vessel penetration point.

Featuring flexible mineral-insulated thermocouple (TC) or RTD insert cables, this multipoint thermometer allows custom positioning of temperature measuring points along the entire probe length. Its adaptable architecture handles high process pressures and elevated temperatures while resisting harsh chemical environments. The modular design simplifies maintenance and retrofit procedures, allowing operators to achieve maximum process visibility without risking vessel integrity or process safety.

As a trusted distributor of process automation instrumentation, we supply original Endress+Hauser multipoint temperature solutions along with technical configuration support. Whether you require tailored probe lengths, specific sensor density, or explosion-proof junction enclosures, the TMS01 delivers uncompromised reliability and long-term signal stability for your plant.

Application Fields

• Oil & Gas Processing (hydrotreating, hydrocracking, and catalytic reforming reactors)

• Petrochemical & Chemical Refining (distillation columns, fixed-bed reactors, and storage tanks)

• High-Pressure Vessel Temperature Profiling and Hot-Spot Detection

• Heavy Process Machinery requiring multi-point thermal monitoring

Technical Specifications

• Measuring Element: Flexible Thermocouple (TC Type K, J, N, etc.) or RTD (Pt100) inserts

• Temperature Range: Up to +1100 °C (+2012 °F) depending on sensor type and protective sheath material

• Measuring Points: Customizable multipoint sensor arrangement along the probe length

• Wetted Materials: Stainless steel 316L, Alloy 600, or specialized heat- and corrosion-resistant alloys

• Process Connections: Flanged process connections according to ASME, EN, or JIS standards

• Signal Output: Multiple direct sensor wiring outputs or integrated multi-channel transmitters with HART / Modbus protocol

FAQ

• Q: Can the sensor insert configuration be customized for specific vessel depths? A: Yes, the TMS01 allows custom spacing and positioning of individual measuring points along the probe to match your exact reactor geometry.

• Q: Is the TMS01 suitable for high-pressure hydrocracking reactors? A: Yes, it is engineered for extreme oil & gas environments, offering robust secondary containment options and high-pressure rating flanged connections.

• Q: What selection assistance do you provide as a distributor? A: As a dedicated distributor, we assist you in verifying engineering specifications, choosing process connection flanges, and matching order codes for exact site requirements.
