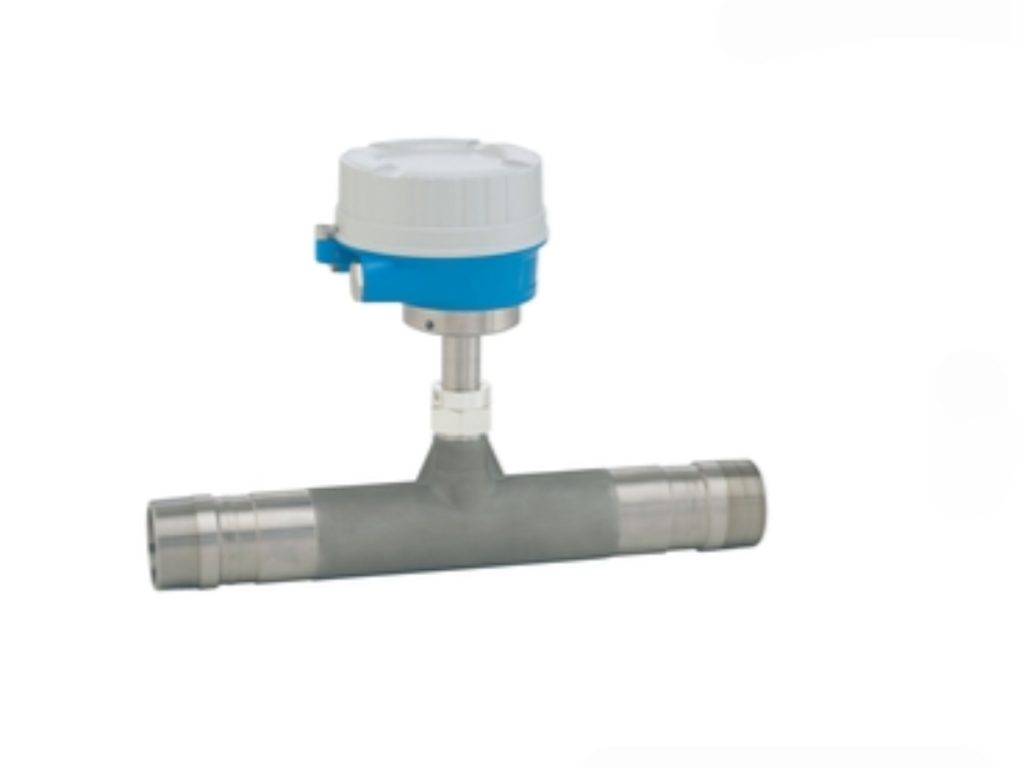

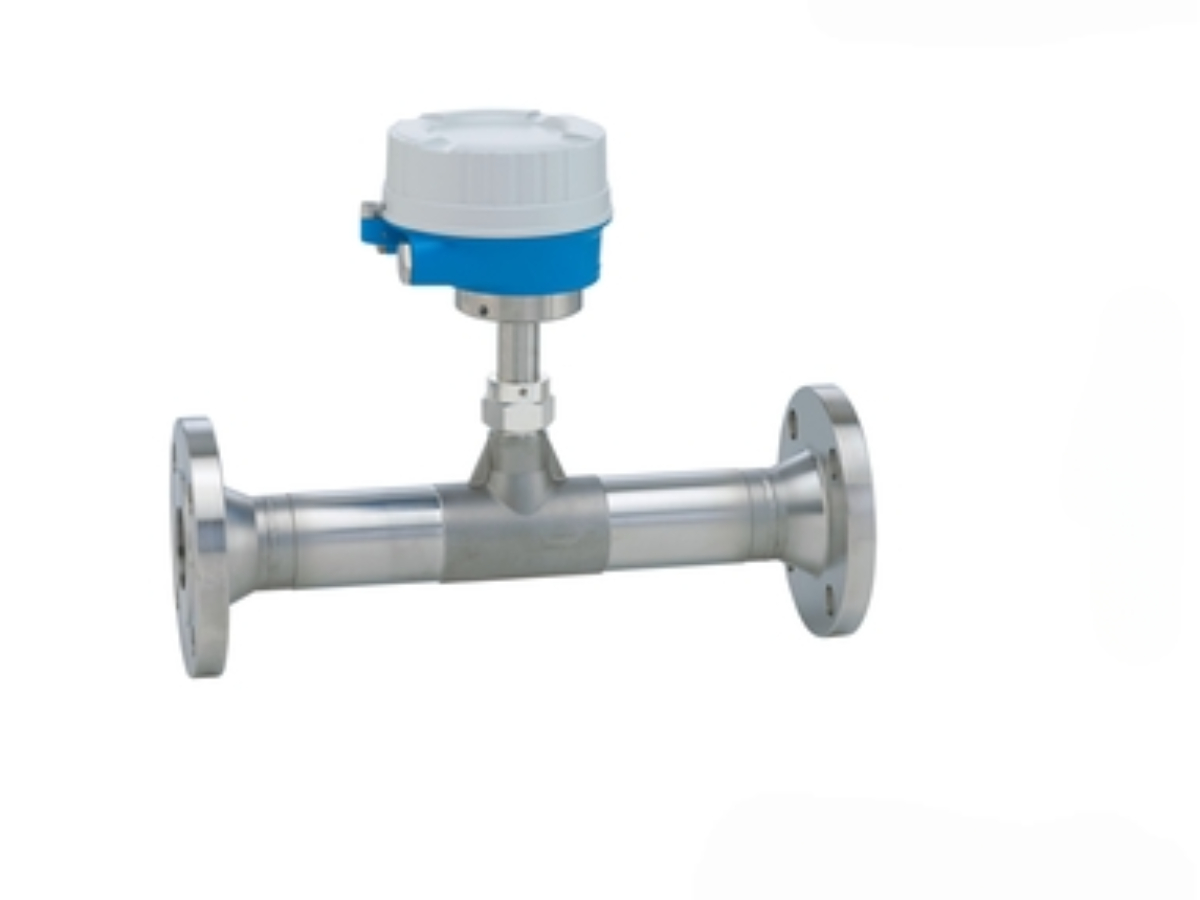

E+H Proline t-mass F 500 Remote Thermal Mass Flowmeter

Precision Remote Gas Mass Flow Measurement

Accurate gas measurement and compressed air monitoring are vital for managing energy costs, improving plant efficiency, and maintaining process safety across heavy industrial facilities. The Endress+Hauser Proline t-mass F 500 Thermal Mass Flowmeter delivers a reliable inline solution for measuring utility gases, fuel gas lines, and dynamic gas mixtures. Utilizing thermal dispersion technology, the t-mass F 500 measures gas mass flow directly, eliminating the need for additional pressure or temperature sensors and complex flow calculation computers.

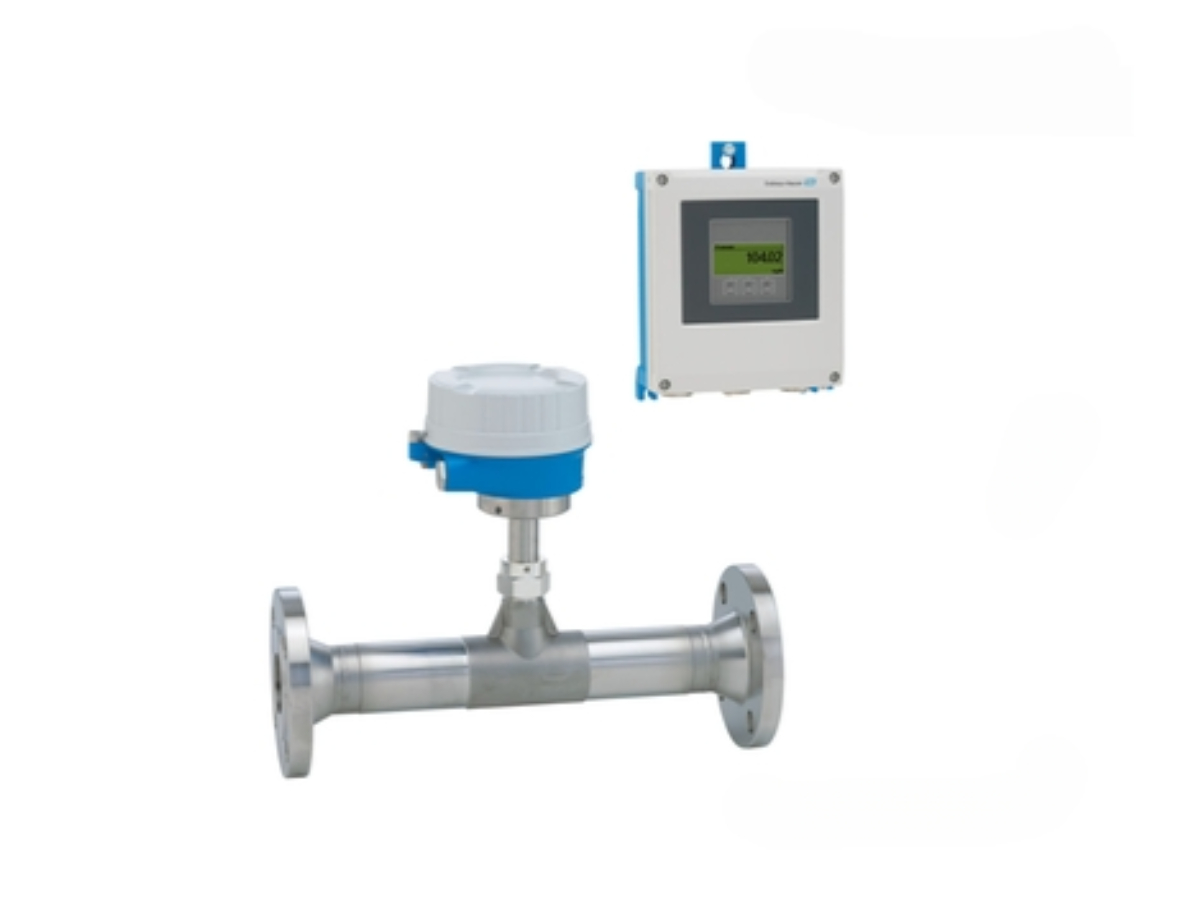

Remote Transmitter Architecture for Severe Field Conditions

A key operational feature of the Proline t-mass F 500 is its remote transmitter housing, which can be installed up to 300 meters (1,000 feet) away from the inline sensor. This split design allows the sensor to operate reliably in high-vibration pipes, elevated temperature zones, or hazardous classified locations, while placing the display and user interface in an accessible, safe location for operators.

The transmitter housing is available in durable aluminum or hygienic stainless steel with IP66/67 (NEMA 4X) ingress protection, ensuring long-term resistance to weather exposure and aggressive industrial atmospheres.

Dynamic Gas Engine Software for Flexible Gas Compositions

The E+H t-mass F 500 integrates Endress+Hauser Gas Engine software functionality, allowing operators to select from pre-programmed standard pure gases or create customized gas mixtures directly in the field.

When process parameters change—such as shifting natural gas compositions, fluctuating biogas streams, or variable nitrogen blanketing flows—the device automatically recalculates thermal properties and flow calibration curves in real time. This flexibility ensures continuous measurement accuracy without requiring factory recalibration or line shutdowns.

Low Head Loss & Onboard Diagnostics

Mechanical gas meters often cause line pressure drops, experience mechanical wear, and drift out of calibration over time. The t-mass F 500 features a robust inline sensor design with no moving parts exposed to the fluid stream, completely eliminating head loss and mechanical maintenance.

The device features built-in Heartbeat Technology, providing continuous self-diagnostics, monitoring, and traceable field verification without interrupting line flow. Audit-ready verification reports can be generated directly on-site to satisfy quality and environmental audits.

Supported industrial communication protocols include 4 to 20 mA HART, Modbus RS485, PROFINET, EtherNet/IP, PROFIBUS PA, and Foundation Fieldbus, ensuring effortless integration into SCADA, PLC, or DCS networks.

 Applications

• Compressed Air Distribution: Direct mass flow monitoring and air leak detection in large manufacturing plants.

• Fuel & Burner Gas Control: Precision natural gas, propane, and methane mass measurement for industrial boilers, kilns, and furnaces.

• Inert Gas Blanketing: Accurate flow tracking of nitrogen (N2), argon (Ar), carbon dioxide (CO2), and oxygen (O2) in chemical reactors.

• Biogas & Environmental Gases: Mass flow measurement in biogas digestion plants, landfill gas extraction, and flare gas systems.

• Gas Metering Skids: Compact inline meter installations for OEM gas mixing, burner control, and utility dosing skids.

7. Technical Specifications

• Manufacturer / Brand: Endress+Hauser (E+H)

• Measurement Principle: Thermal mass flow measurement.

• Measured Variables: Direct mass flow, calculated volumetric flow, gas temperature.

• Measuring Media: Utility gases, compressed air, natural gas, inert gases, biogas, custom gas mixtures.

• Nominal Pipe Sizes: Inline version DN 15 to 100 (1/2” to 4”); Insertion version available for larger line sizes.

• Measurement Accuracy: Gas: ±1.0% of reading (for 10% to 100% of full scale value).

• Turndown Ratio: Up to 1:100.

• Transmitter Configuration: Remote transmitter (up to 300 m / 1,000 ft cable distance from sensor).

• Sensor Materials: Stainless steel 1.4404 (316/316L), Alloy C22.

• Process Temperature Range: -40 °C to +180 °C (-40 °F to +356 °F).

• Operating Pressure Range: Up to 40 bar(g) (580 psi(g)).

• Digital Communication: HART, Modbus RS485, PROFINET, EtherNet/IP, PROFIBUS PA, Foundation Fieldbus.

• Diagnostic Function: Integrated Heartbeat Technology for continuous self-monitoring and verification.

• Protection Class: IP66/67 (NEMA 4X / Type 4X enclosure).

FAQ

Q1: Is the Endress+Hauser t-mass F 500 supplied as an authentic original unit? A: Yes. We supply 100% genuine, brand-new Endress+Hauser instruments complete with original factory serial numbers, calibration reports, and official documentation.

Q2: What is the main advantage of the t-mass F 500 remote transmitter version? A: The remote transmitter version allows the sensor to be placed in hard-to-reach, high-vibration, or extreme temperature piping locations, while the display transmitter is located up to 300 meters away in a safe, convenient location for operators.

Q3: Can the t-mass F 500 handle changing gas mixture compositions? A: Yes. The t-mass F 500 features integrated Gas Engine software that allows field configuration for standard pure gases or customized gas mixtures without requiring factory recalibration.

Q4: How can I request distributor quotes and confirm lead times? A: Simply submit your required E+H model ordering code, process gas composition, pipe size, and operating pressure through our inquiry form. Our sales team will provide a prompt, competitive quotation and export delivery timeline.
