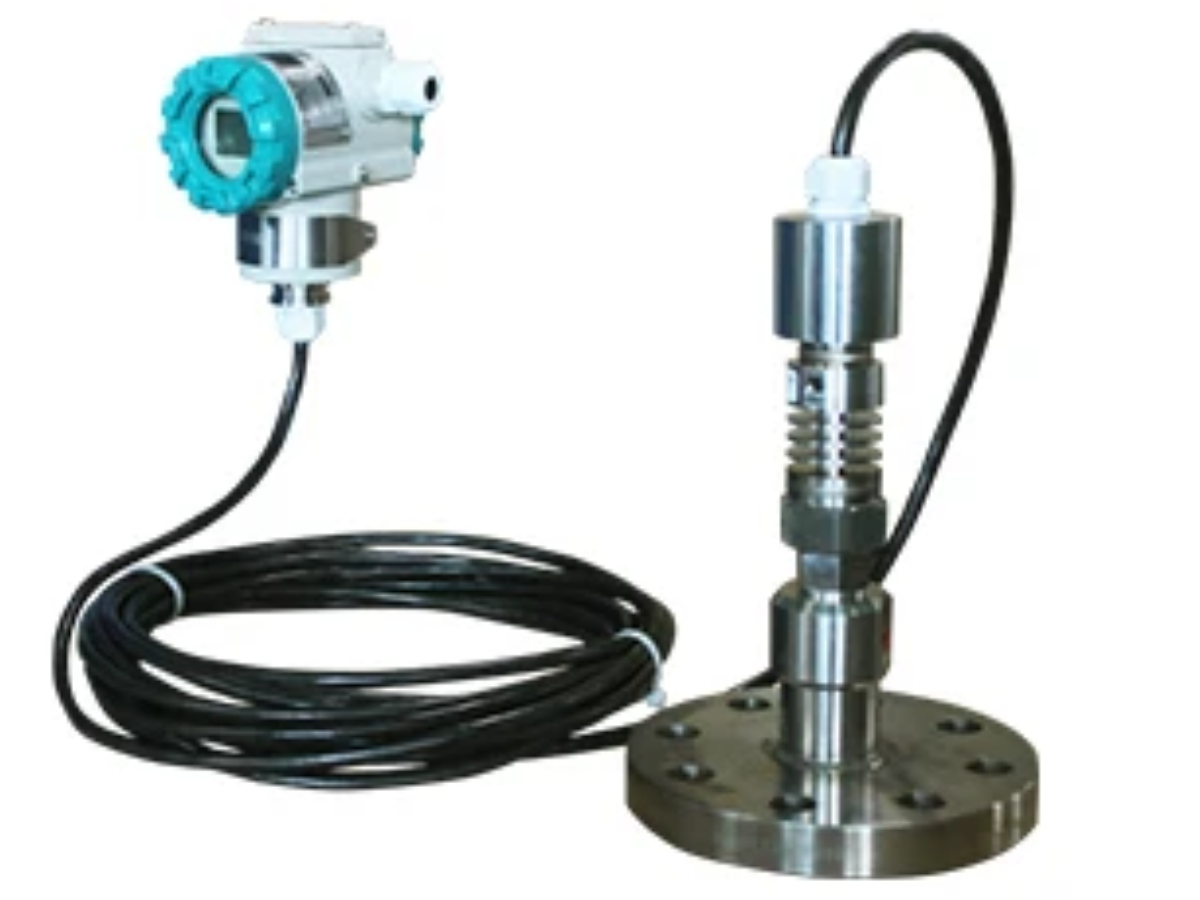

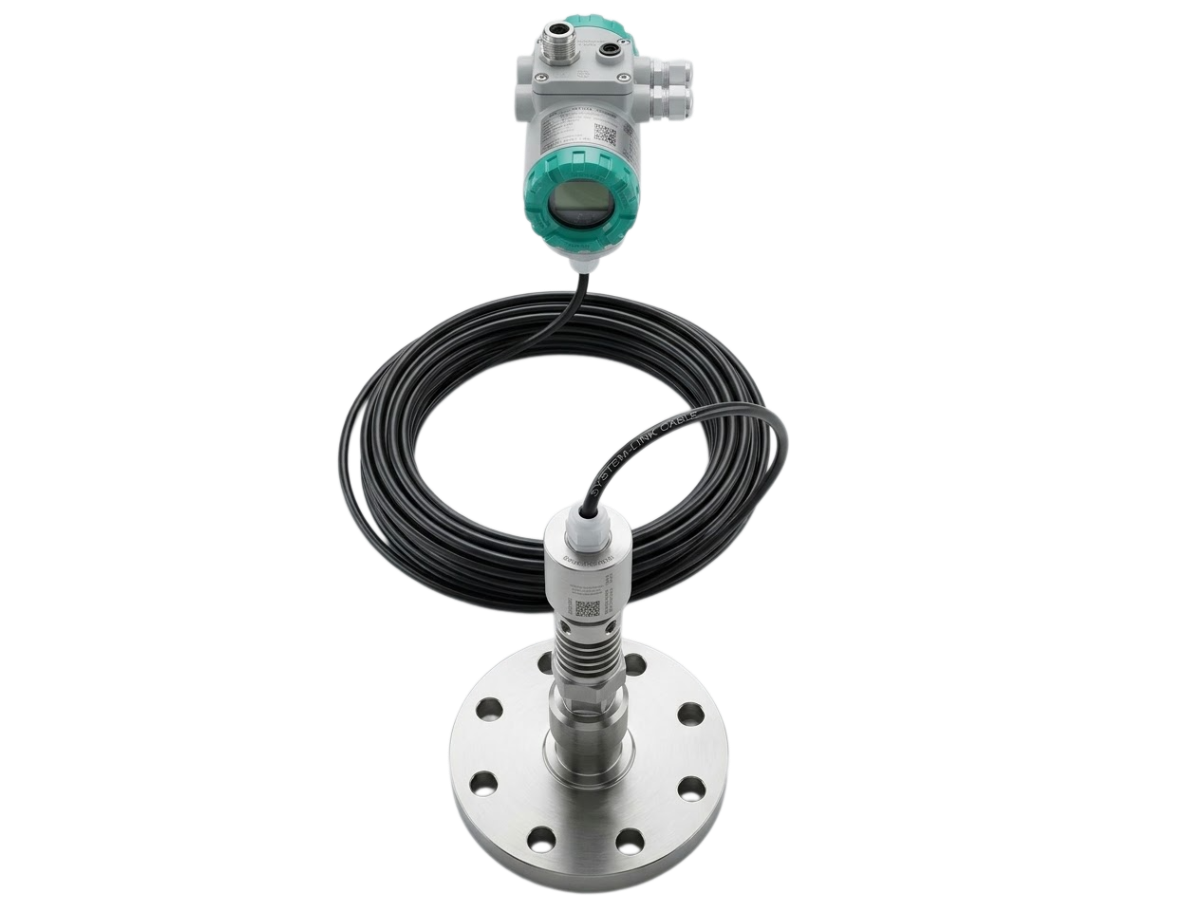

Chuanyi PDS879 Ultra-High Temperature Remote Pressure Transmitter

The Chuanyi PDS879 ultra-high temperature remote pressure transmitter represents a pinnacle of reliability and precision in modern industrial measurement technology. Designed for engineers and procurement professionals seeking dependable process instrumentation tailored for severe thermal sectors, the PDS879 excels in monitoring gage pressure, absolute pressure, and liquid levels across complex high-temperature systems where standard instruments fail.

Core Technology and Performance

At the heart of the Chuanyi PDS879 is a highly stable and sensitive sensor module connected via specialized high-temperature remote seals and capillary assemblies that accurately isolate extreme thermal process media while transmitting clean electrical signals. The device supports standard industrial output protocols, ensuring seamless compatibility with existing Distributed Control Systems (DCS) and Programmable Logic Controllers (PLCs). Advanced digital signal processing features effectively filter out process noise, guaranteeing high measurement accuracy and repeatability under variable high-temperature field conditions.

Industrial Versatility and Durability

Engineered for rugged operating environments that demand thermal resistance, the PDS879 ultra-high temperature remote pressure transmitter features a corrosion-resistant enclosure and robust capillary protection designed to withstand extreme operating temperatures common in heavy industries. Its modular structure facilitates straightforward installation, local zero/span adjustments, and routine maintenance, thereby minimizing operational downtime. Whether deployed in continuous thermal processing or heavy utility monitoring, the transmitter maintains consistent calibration and exceptional long-term stability.

Key Features & Benefits

• High Measurement Precision: Advanced sensor architecture ensures minimal thermal drift and high accuracy for critical high-temperature control loops.

• Robust Signal Output: Provides reliable analog and digital communication signals for seamless system integration.

• Flexible Configuration: Easily adjustable zero and span settings, damping controls, and comprehensive diagnostic functions.

• Harsh Environment Tolerance: Constructed with specialized high-temperature wetted materials and remote seals to resist extreme heat and mechanical stress.

• Comprehensive Diagnostics: Built-in self-diagnostics proactively alert operators to loop anomalies or abnormal process inputs.

Applications

• Power Generation: Monitoring high-temperature steam lines, boiler headers, and superheater pressure drops.

• Chemical and Petrochemical: Tracking pressures in high-temperature reactors, cracking furnaces, and distillation columns.

• Metallurgy and Mining: Handling high-temperature fluid lines, molten salt systems, and severe thermal process environments.

• Industrial Heating Systems: Managing thermal oil loops and high-pressure steam distribution networks.

• General Heavy Industrial Automation: Providing reliable pressure feedback for auxiliary high-temperature machinery and fluid systems.

Technical Specifications

• Product Model: Chuanyi PDS879 ultra-high temperature remote pressure transmitter

• Instrument Type: Smart Ultra-High Temperature Remote Pressure / Differential Pressure Transmitter

• Measured Medium: Liquid, Gas, Steam, Extreme High-Temperature Process Media

• Output Signal: 4-20 mA DC with digital communication protocols

• Accuracy Class: High-precision standard calibration ranges

• Power Supply: Standard industrial DC loop power (typically 12.5V – 45V DC)

• Ambient Temperature Limits: Standard industrial operational limits for electronics (-40°C to +85°C, with specialized high-temperature remote seal limits)

• Wetted Materials: Specialized high-temperature alloy diaphragms and flanges suitable for extreme thermal requirements

• Enclosure Rating: Weatherproof and explosion-proof structural designs available for hazardous areas

FAQ

Q1: What is the primary use of the Chuanyi PDS879? A1: The PDS879 is primarily designed to measure pressure and liquid levels in extreme high-temperature industrial applications, converting variables into standard industrial output signals for control systems while protecting electronics from severe heat.

Q2: Does the PDS879 support digital communication? A2: Yes, it supports standard industrial communication protocols, enabling remote configuration, calibration, and diagnostic monitoring via compatible handheld communicators or control software.

Q3: How does the remote seal design protect the transmitter in high-temperature environments? A3: The remote seal and capillary system physically separate the main electronic housing from the high-temperature process point, using specialized fill fluids and diaphragm materials to safely dissipate and isolate extreme heat.

Q4: How do I determine the appropriate capillary length and temperature rating for my application? A4: Selection depends on your physical distance requirements from the hot tapping point, maximum process temperature limits, and working pressure thresholds. Please refer to the official technical datasheet for precise engineering specifications.
