Chuanyi PDS813 Paper Industry Pressure Transmitter

PDS813

The Chuanyi PDS813 paper industry pressure transmitter is engineered to measure liquid, gas, and steam pressure in pulp and paper applications, offering high accuracy and dependable long-term stability. It delivers exceptional performance across specialized operational environments to ensure precise process monitoring.

Request Pricing Download product documents

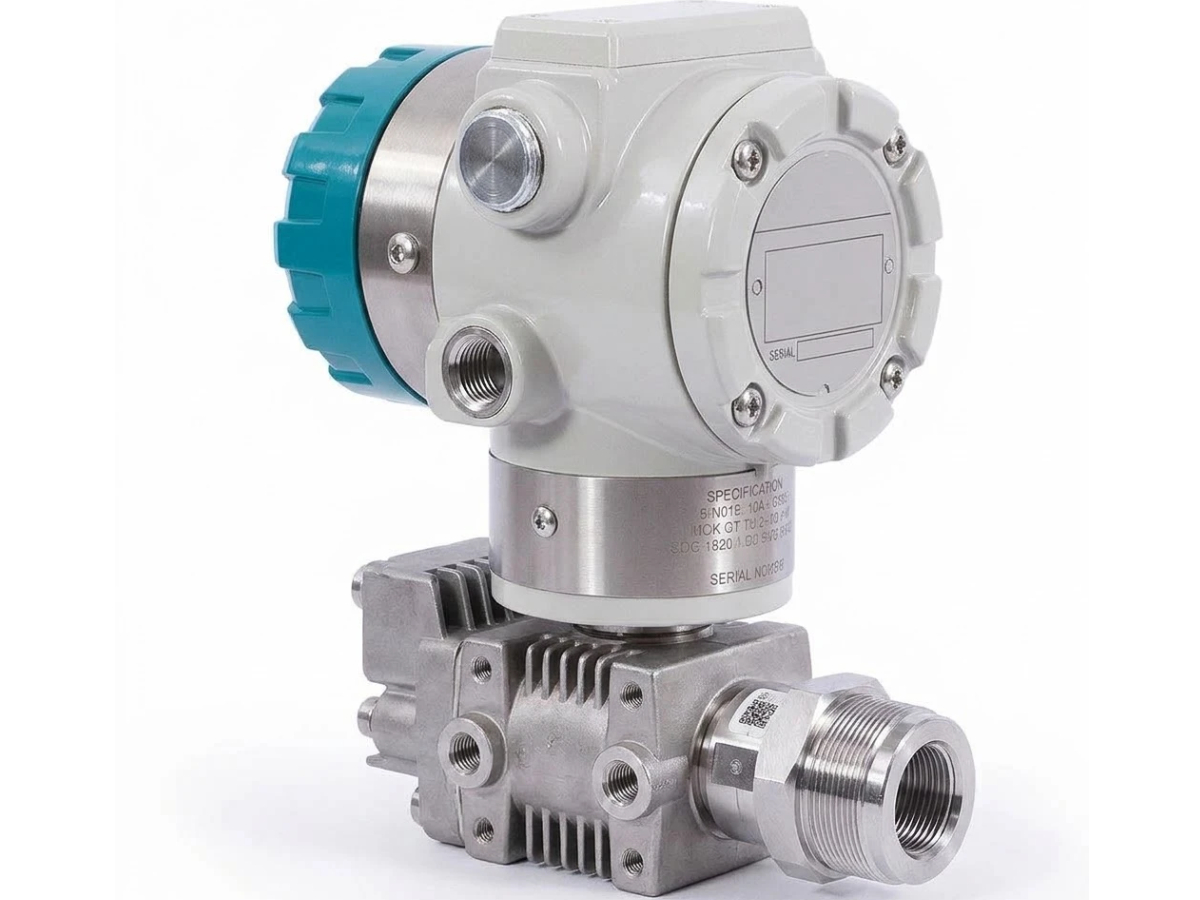

Chuanyi PDS813 Paper Industry Pressure Transmitter Product View

The Chuanyi PDS813 paper industry pressure transmitter represents a pinnacle of reliability and precision in modern industrial measurement technology. Designed for engineers and procurement professionals seeking dependable process instrumentation tailored for specific industrial sectors, the PDS813 excels in monitoring gage pressure, absolute pressure, and liquid levels across complex pulp, paper, and utility systems.

Core Technology and Performance

At the heart of the Chuanyi PDS813 is a highly stable and sensitive sensor module that accurately isolates process media while transmitting clean electrical signals. The device supports standard industrial output protocols, ensuring seamless compatibility with existing Distributed Control Systems (DCS) and Programmable Logic Controllers (PLCs). Advanced digital signal processing features effectively filter out process noise, guaranteeing high measurement accuracy and repeatability under variable field conditions.

Industrial Versatility and Durability

Engineered for rugged operating environments, the PDS813 paper industry pressure transmitter features a corrosion-resistant enclosure designed to withstand harsh industrial atmospheres and media characteristics common in paper manufacturing. Its modular structure facilitates straightforward installation, local zero/span adjustments, and routine maintenance, thereby minimizing operational downtime. Whether deployed in continuous pulp processing or heavy utility monitoring, the transmitter maintains consistent calibration and exceptional long-term stability.

Key Features & Benefits

  • High Measurement Precision: Advanced sensor architecture ensures minimal drift and high accuracy for critical control loops.

  • Robust Signal Output: Provides reliable analog and digital communication signals for seamless system integration.

  • Flexible Configuration: Easily adjustable zero and span settings, damping controls, and comprehensive diagnostic functions.

  • Harsh Environment Tolerance: Constructed with durable wetted and non-wetted materials to resist mechanical stress and chemical exposure.

  • Comprehensive Diagnostics: Built-in self-diagnostics proactively alert operators to loop anomalies or abnormal process inputs.

Applications

  • Pulp and Paper Manufacturing: Monitoring line pressure, tank levels, and specialized fluid handling across pulp-making and paper-forming lines.

  • Chemical Recovery Systems: Tracking pressures in chemical processing loops and auxiliary recovery units.

  • Steam and Condensate Loops: Managing steam headers and pressure drops in utility lines.

  • Water and Wastewater Treatment: Controlling municipal or industrial distribution pressures and filtration system levels.

  • General Industrial Automation: Providing reliable pressure feedback for auxiliary machinery and fluid systems.

Technical Specifications

  • Product Model: Chuanyi PDS813 paper industry pressure transmitter

  • Instrument Type: Smart Paper Industry Pressure Transmitter

  • Measured Medium: Liquid, Gas, Steam, Pulp-related Process Media

  • Output Signal: 4-20 mA DC with digital communication protocols

  • Accuracy Class: High-precision standard calibration ranges

  • Power Supply: Standard industrial DC loop power (typically 12.5V – 45V DC)

  • Ambient Temperature Limits: Standard industrial operational limits (-40°C to +85°C depending on configuration)

  • Wetted Materials: Available in standard stainless steel and corrosion-resistant options suitable for process requirements

  • Enclosure Rating: Weatherproof and explosion-proof structural designs available for hazardous areas

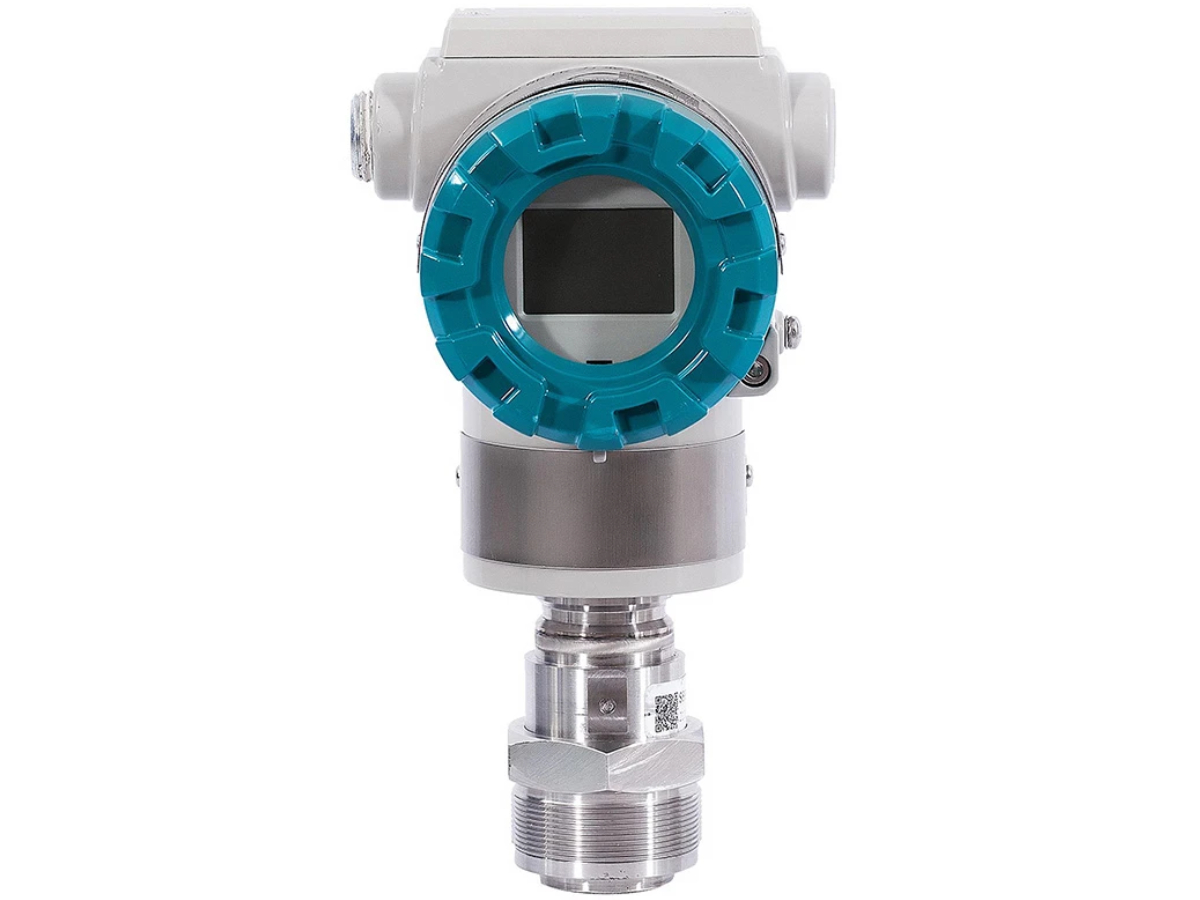

Chuanyi PDS813 Paper Industry Pressure Transmitter

FAQ

Q1: What is the primary use of the Chuanyi PDS813? A1: The PDS813 is primarily designed to measure pressure and liquid levels in pulp, paper, and related industrial processes, converting variables into standard industrial output signals for control systems.

Q2: Does the PDS813 support digital communication? A2: Yes, it supports standard industrial communication protocols, enabling remote configuration, calibration, and diagnostic monitoring via compatible handheld communicators or control software.

Q3: Can the PDS813 be deployed in hazardous or outdoor environments? A3: Yes, it features robust weather-resistant housing and optional explosion-proof configurations suitable for demanding outdoor and hazardous industrial locations.

Q4: How do I determine the appropriate pressure range for my application? A4: Range selection depends on your maximum working pressure, operating temperature limits, and process connection requirements. Please refer to the official technical datasheet for precise engineering specifications.
