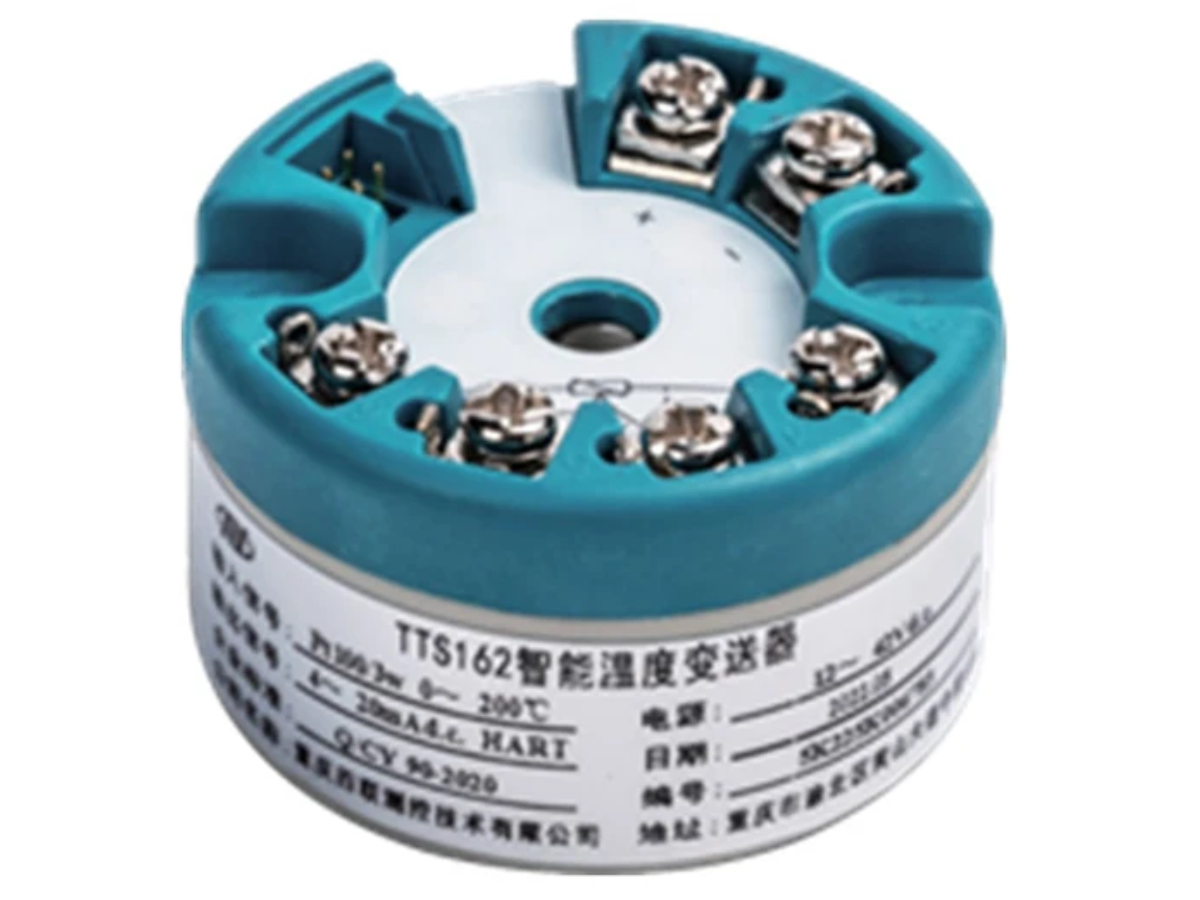

Chongqing Chuanyi TTS16 Smart Temperature Transmitter

Advanced Measurement Performance and Smart Technology

The Chongqing Chuanyi TTS16 Smart Temperature Transmitter represents a new generation of high-precision process instrumentation. Utilizing sophisticated non-linear correction techniques, the device guarantees a reliable relationship between the output signal and the measured temperature. Equipped with a high-accuracy cold junction compensation circuit and an internal drift self-correction system, it maintains exceptional measurement precision across its operating temperature range.

Flexible Multi-Sensor Input and Communication Options

Designed to accommodate diverse industrial needs, the TTS16 supports a comprehensive variety of input signals, including multiple RTD types (Pt10, Pt100, Pt1000, Cu50, Cu100), thermocouples (B, E, J, K, N, R, S, T), ohms, and millivolt sources. Depending on the specific configuration model, it offers options ranging from standard 4-20mA current outputs, HART protocol communication, to advanced fieldbus protocols such as FF and PA, allowing for effortless remote configuration and digital data integration.

Rugged Construction and Safety Certifications

Built to endure harsh industrial settings, the TTS16 offers robust configurations including intrinsic safety protection. The compact module designs or rail-mounted options provide superior resistance against environmental interference, ensuring reliable round-the-clock operation in complex industrial plants and hazardous locations.

Applications

• Petroleum & Petrochemical: Crude oil refining, pipeline monitoring, reaction temperature control, and hazardous area thermal tracking.

• Chemical & Fine Chemical: High-temperature reactor oversight, chemical synthesis monitoring, and distillation column management.

• Power Generation: Boiler temperature profiling, steam turbine monitoring, and auxiliary plant system control.

• Metallurgy & Building Materials: Furnace temperature control, metal processing, and kiln thermal management.

Technical Specifications

Technical Parameter	Specification / Performance
Input Signals	RTD (Pt100, Pt1000, Pt10, Cu50, Cu100), Thermocouple (B, E, J, K, N, R, S, T), Resistance (0 to 800 Ohm), Millivolt (-320mV to 320mV)
Output Signal	4-20mA DC, HART communication, CMBUS, FF bus, or PA bus (depending on model)
Basic Accuracy	Up to ±0.05% FS or ±0.1% FS (depending on model configuration)
Power Supply	12V DC to 42V DC (Ripple content <= 0.5%)
Explosion-Proof Ratings	Intrinsic Safety (Ex ia IIC T4 Ga)
Ambient Temperature	-40°C to 85°C
Insulation Resistance	Not less than 50 Megaohm between terminals and housing

FAQ

Q1: What input sensor types are supported by the TTS16 transmitter? A: The TTS16 is a universal input transmitter supporting a wide array of temperature sensors, including various platinum and copper RTDs (Pt100, Pt1000, Cu50), standard thermocouples (K, J, S, B, E, N, R, T), as well as direct ohm and millivolt signals.

Q2: Does the TTS16 support remote configuration? A: Yes. Models equipped with HART communication or fieldbus protocols enable users to easily configure parameters, perform diagnostics, and monitor variables remotely using standard handheld communicators or PC configuration software.

Q3: What hazardous area certifications does this transmitter hold? A: The TTS16 provides strict safety protection with intrinsic safety certifications suitable for hazardous industrial atmospheres.

Q4: What mounting options are available for this model? A: The transmitter is available in versatile configurations including head-mount modules and rail-mounted options to suit diverse cabinet and field enclosure designs.
