ABB FEP630 Electromagnetic Flowmeter

FEP630

Designed for precise measurement of conductive liquids, slurries, acids, and alkalis, the ABB FEP630 electromagnetic flowmeter delivers exceptional long-term accuracy and reliability in harsh process environments. Featuring advanced diagnostic tools, flexible digital communication options like HART and PROFIBUS PA, and a robust modular design, it ensures seamless integration and optimal control for industrial applications.

Request Pricing Download product documents

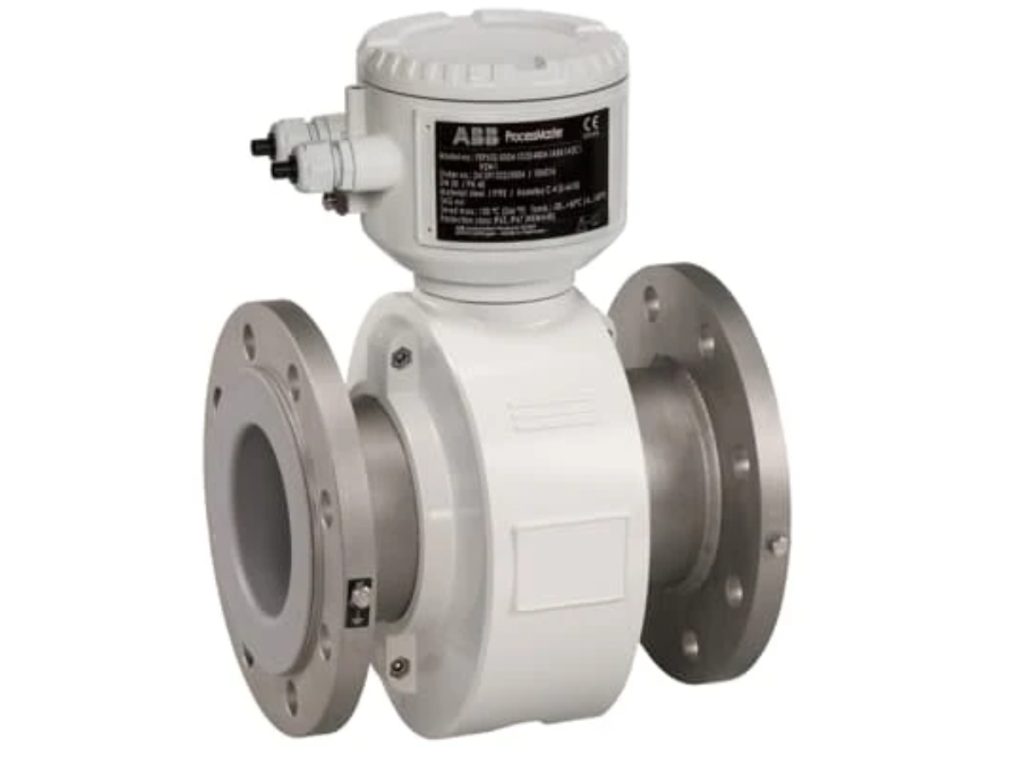

ABB ProcessMaster FEP630 Electromagnetic Flowmeter with Digital Display

Overview

The ABB ProcessMaster FEP630 is a benchmark electromagnetic flowmeter designed to meet the rigorous demands of modern industrial process automation. Engineered for precise volume flow measurement of conductive liquids, slurries, and pastes, the FEP630 combines cutting-edge sensor technology with intelligent transmitter features. Whether deployed in chemical processing, water and wastewater management, food and beverage, or power generation, this flowmeter provides exceptional performance, operational safety, and ease of use.

Key Features and Benefits

  • Superior Measurement Accuracy: Built with advanced magnetic field optimization to ensure high precision and repeatability, even under challenging flow profile conditions.

  • Smart Diagnostics and Verification: Features built-in verification tools that monitor device health and process conditions continuously, ensuring maximum plant availability and simplifying compliance documentation.

  • Modular and Robust Architecture: The dual-compartment housing design separates the electronics from the terminal compartment, protecting internal components against moisture and harsh environmental elements.

  • Comprehensive Digital Connectivity: Equipped with flexible communication interfaces including 4–20 mA / HART, PROFIBUS PA, FOUNDATION Fieldbus, and modern Ethernet-APL technology, enabling effortless integration into distributed control systems (DCS).

  • Extensive Material Selection: Offers a wide variety of liner materials (such as PFA, PTFE, ETFE, and Hard Rubber) and electrode options (Hastelloy, Titanium, Platinum, etc.) to match highly corrosive or abrasive media.

Applications

The ABB FEP630 electromagnetic flowmeter is widely utilized across diverse industrial sectors for reliable monitoring and control, including:

  • Water and Wastewater: Flow monitoring in water treatment plants, desalination facilities, and municipal distribution networks.

  • Chemical and Process Industries: Accurate metering of aggressive acids, bases, corrosive chemicals, and conductive solvents.

  • Food and Beverage: Sanitary and hygienic flow tracking in brewing, dairy, and beverage production lines.

  • Mining and Minerals: Measurement of heavy slurries, abrasive mining fluids, and utility water lines.

Technical Specifications

  • Measuring Principle: Electromagnetic flow measurement (Faraday’s Law of Electromagnetic Induction).

  • Nominal Diameter (DN): DN 3 to DN 2000 (1/10 in. to 80 in.) depending on model configuration.

  • Base Accuracy: Standard calibration accuracy up to ±0.4% of rate (optional high-accuracy calibration available).

  • Process Temperature Limits: Sensor temperature ranges from -40°C up to 180°C (-40°F to 356°F) depending on liner and design style.

  • Process Pressure (Nominal Pressure): PN 10 to PN 100 (and ASME cl. 150 to cl. 900) depending on nominal diameter and flange rating.

  • Power Supply:

    • 100 to 230 V AC, 50 / 60 Hz.

    • 24 V DC (AC/DC auxiliary power depending on execution).

  • Outputs and Communication:

    • Current output (4–20 mA), passive/active digital outputs, pulse output, and alarm outputs.

    • Digital communication protocols: HART, PROFIBUS PA, FOUNDATION Fieldbus, and Ethernet-APL.

  • Enclosure IP Rating: IP67 / NEMA 4X (optional IP68 for remote sensor executions).

  • Ex-Approvals (Hazardous Areas): ATEX, IECEx, cFMus approvals for Zone 1, Zone 2, and Division 1 / Division 2 hazardous locations.

FAQ

Q1: What types of fluids can the ABB FEP630 measure?

A: The ABB FEP630 is designed to measure any conductive liquid with a minimum conductivity (typically ≥ 5 μS/cm, or ≥ 20 μS/cm for demineralized water), including acids, alkalis, industrial wastewater, slurries, and process water.

Q2: What communication options are available for system integration?

A: The flowmeter supports multiple standard and advanced protocols, including 4–20 mA with HART, PROFIBUS PA, FOUNDATION Fieldbus, and Ethernet-APL, ensuring compatibility with almost any modern control system.

Q3: Can the FEP630 be used in hazardous, explosion-risk environments?

A: Yes, the FEP630 series offers comprehensive hazardous area certifications, including ATEX, IECEx, and FM approvals, making it safe for installation in explosion-prone zones.

Q4: How do I select the right liner material for corrosive chemicals?

A: Selection depends on chemical compatibility and operating temperature. Common liner materials like PFA and PTFE offer exceptional resistance to aggressive chemicals and high temperatures, while elastomers are ideal for general water and slurry applications.
